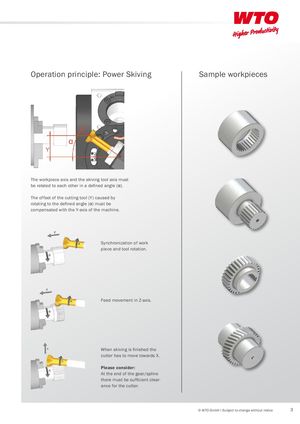

Operation principle: Power Skiving Sample workpieces The workpiece axis and the skiving tool axis must be related to each other in a defined angle (α). The offset of the cutting tool (Y) caused by rotating to the defined angle (α) must be compensated with the Y-axis of the machine. Synchronization of work piece and tool rotation. Feed movement in Z-axis. When skiving is finished the cutter has to move towards X. Please consider: At the end of the gear/spline there must be sufficient clear- ance for the cutter. © WTO GmbH I Subject to change without notice 3
