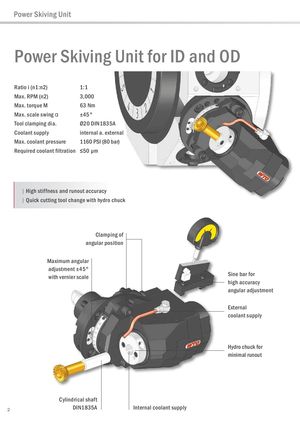

Power Skiving Unit Power Skiving Unit for ID and OD Ratio i (n1:n2) 1:1 Max. RPM (n2) 3,000 Max. torque M 63 Nm Max. scale swing α ±45° Tool clamping dia. Ø20 DIN1835A Coolant supply internal a. external Max. coolant pressure 1160 PSI (80 bar) Required coolant filtration ≤50 μm | High stiffness and runout accuracy | Quick cutting tool change with hydro chuck Clamping of angular position Maximum angular adjustment ±45° with vernier scale Sine bar for high accuracy angular adjustment External coolant supply Hydro chuck for minimal runout Cylindrical shaft 2 DIN1835A Internal coolant supply
