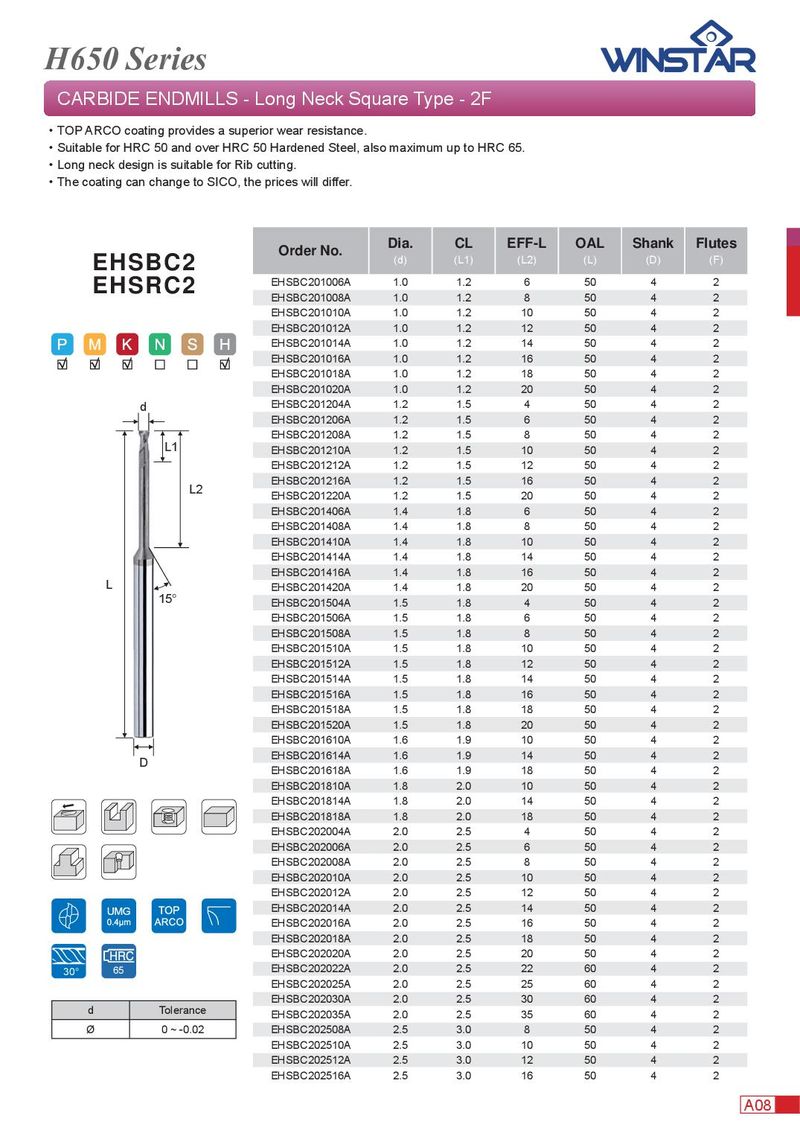

H650 Series CARBIDE ENDMILLS - Long Neck Square Type - 2F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Long neck design is suitable for Rib cutting. ． The coating can change to SICO, the prices will differ. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EHSBC2 EHSBC201006A 1.0 1.2 6 50 4 2 EHSRC2 EHSBC201008A 1.0 1.2 8 50 4 2 EHSBC201010A 1.0 1.2 10 50 4 2 EHSBC201012A 1.0 1.2 12 50 4 2 EHSBC201014A 1.0 1.2 14 50 4 2 EHSBC201016A 1.0 1.2 16 50 4 2 EHSBC201018A 1.0 1.2 18 50 4 2 EHSBC201020A 1.0 1.2 20 50 4 2 d EHSBC201204A 1.2 1.5 4 50 4 2 EHSBC201206A 1.2 1.5 6 50 4 2 EHSBC201208A 1.2 1.5 8 50 4 2 L1 EHSBC201210A 1.2 1.5 10 50 4 2 EHSBC201212A 1.2 1.5 12 50 4 2 EHSBC201216A 1.2 1.5 16 50 4 2 L2 EHSBC201220A 1.2 1.5 20 50 4 2 EHSBC201406A 1.4 1.8 6 50 4 2 EHSBC201408A 1.4 1.8 8 50 4 2 EHSBC201410A 1.4 1.8 10 50 4 2 EHSBC201414A 1.4 1.8 14 50 4 2 EHSBC201416A 1.4 1.8 16 50 4 2 L EHSBC201420A 1.4 1.8 20 50 4 2 15° EHSBC201504A 1.5 1.8 4 50 4 2 EHSBC201506A 1.5 1.8 6 50 4 2 EHSBC201508A 1.5 1.8 8 50 4 2 EHSBC201510A 1.5 1.8 10 50 4 2 EHSBC201512A 1.5 1.8 12 50 4 2 EHSBC201514A 1.5 1.8 14 50 4 2 EHSBC201516A 1.5 1.8 16 50 4 2 EHSBC201518A 1.5 1.8 18 50 4 2 EHSBC201520A 1.5 1.8 20 50 4 2 EHSBC201610A 1.6 1.9 10 50 4 2 EHSBC201614A 1.6 1.9 14 50 4 2 D EHSBC201618A 1.6 1.9 18 50 4 2 EHSBC201810A 1.8 2.0 10 50 4 2 EHSBC201814A 1.8 2.0 14 50 4 2 EHSBC201818A 1.8 2.0 18 50 4 2 EHSBC202004A 2.0 2.5 4 50 4 2 EHSBC202006A 2.0 2.5 6 50 4 2 EHSBC202008A 2.0 2.5 8 50 4 2 EHSBC202010A 2.0 2.5 10 50 4 2 EHSBC202012A 2.0 2.5 12 50 4 2 EHSBC202014A 2.0 2.5 14 50 4 2 EHSBC202016A 2.0 2.5 16 50 4 2 EHSBC202018A 2.0 2.5 18 50 4 2 EHSBC202020A 2.0 2.5 20 50 4 2 30° 65 EHSBC202022A 2.0 2.5 22 60 4 2 EHSBC202025A 2.0 2.5 25 60 4 2 EHSBC202030A 2.0 2.5 30 60 4 2 d Tolerance EHSBC202035A 2.0 2.5 35 60 4 2 Ø 0 ~ -0.02 EHSBC202508A 2.5 3.0 8 50 4 2 EHSBC202510A 2.5 3.0 10 50 4 2 EHSBC202512A 2.5 3.0 12 50 4 2 EHSBC202516A 2.5 3.0 16 50 4 2 A08
