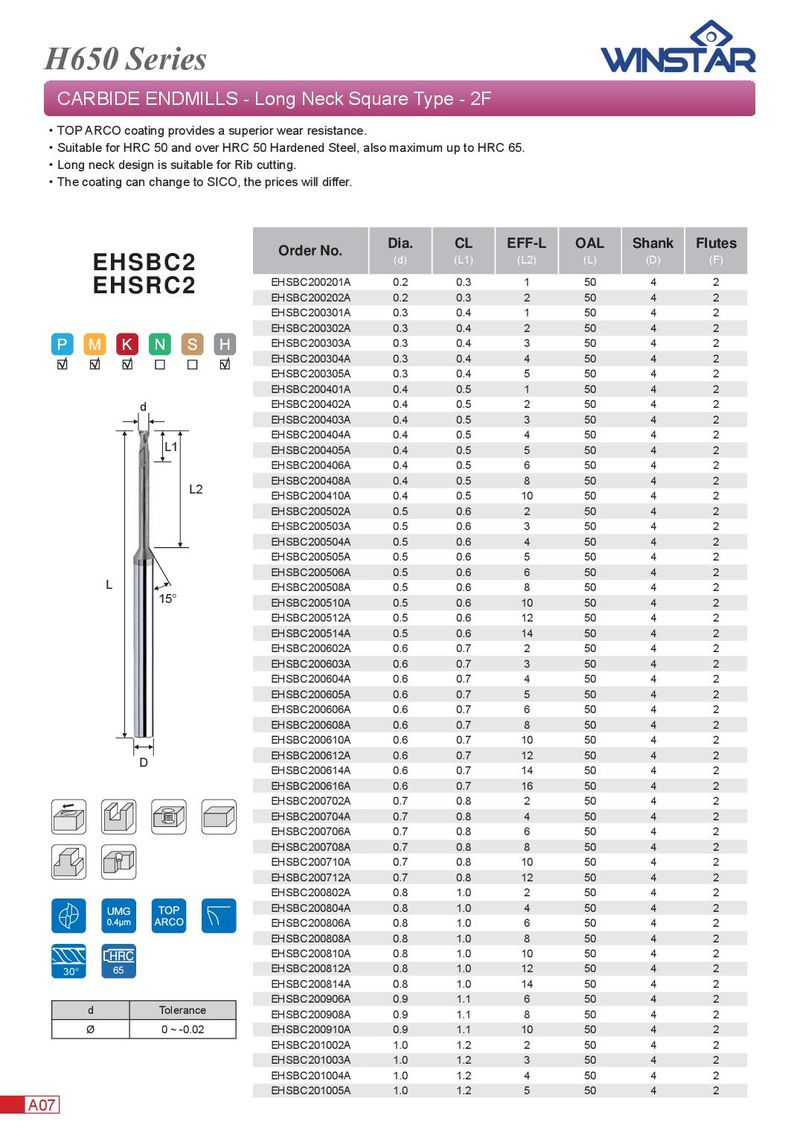

H650 Series CARBIDE ENDMILLS - Long Neck Square Type - 2F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Long neck design is suitable for Rib cutting. ． The coating can change to SICO, the prices will differ. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EHSBC2 EHSBC200201A 0.2 0.3 1 50 4 2 EHSRC2 EHSBC200202A 0.2 0.3 2 50 4 2 EHSBC200301A 0.3 0.4 1 50 4 2 EHSBC200302A 0.3 0.4 2 50 4 2 EHSBC200303A 0.3 0.4 3 50 4 2 EHSBC200304A 0.3 0.4 4 50 4 2 EHSBC200305A 0.3 0.4 5 50 4 2 EHSBC200401A 0.4 0.5 1 50 4 2 d EHSBC200402A 0.4 0.5 2 50 4 2 EHSBC200403A 0.4 0.5 3 50 4 2 EHSBC200404A 0.4 0.5 4 50 4 2 L1 EHSBC200405A 0.4 0.5 5 50 4 2 EHSBC200406A 0.4 0.5 6 50 4 2 EHSBC200408A 0.4 0.5 8 50 4 2 L2 EHSBC200410A 0.4 0.5 10 50 4 2 EHSBC200502A 0.5 0.6 2 50 4 2 EHSBC200503A 0.5 0.6 3 50 4 2 EHSBC200504A 0.5 0.6 4 50 4 2 EHSBC200505A 0.5 0.6 5 50 4 2 EHSBC200506A 0.5 0.6 6 50 4 2 L EHSBC200508A 0.5 0.6 8 50 4 2 15° EHSBC200510A 0.5 0.6 10 50 4 2 EHSBC200512A 0.5 0.6 12 50 4 2 EHSBC200514A 0.5 0.6 14 50 4 2 EHSBC200602A 0.6 0.7 2 50 4 2 EHSBC200603A 0.6 0.7 3 50 4 2 EHSBC200604A 0.6 0.7 4 50 4 2 EHSBC200605A 0.6 0.7 5 50 4 2 EHSBC200606A 0.6 0.7 6 50 4 2 EHSBC200608A 0.6 0.7 8 50 4 2 EHSBC200610A 0.6 0.7 10 50 4 2 EHSBC200612A 0.6 0.7 12 50 4 2 D EHSBC200614A 0.6 0.7 14 50 4 2 EHSBC200616A 0.6 0.7 16 50 4 2 EHSBC200702A 0.7 0.8 2 50 4 2 EHSBC200704A 0.7 0.8 4 50 4 2 EHSBC200706A 0.7 0.8 6 50 4 2 EHSBC200708A 0.7 0.8 8 50 4 2 EHSBC200710A 0.7 0.8 10 50 4 2 EHSBC200712A 0.7 0.8 12 50 4 2 EHSBC200802A 0.8 1.0 2 50 4 2 EHSBC200804A 0.8 1.0 4 50 4 2 EHSBC200806A 0.8 1.0 6 50 4 2 EHSBC200808A 0.8 1.0 8 50 4 2 EHSBC200810A 0.8 1.0 10 50 4 2 30° 65 EHSBC200812A 0.8 1.0 12 50 4 2 EHSBC200814A 0.8 1.0 14 50 4 2 EHSBC200906A 0.9 1.1 6 50 4 2 d Tolerance EHSBC200908A 0.9 1.1 8 50 4 2 Ø 0 ~ -0.02 EHSBC200910A 0.9 1.1 10 50 4 2 EHSBC201002A 1.0 1.2 2 50 4 2 EHSBC201003A 1.0 1.2 3 50 4 2 EHSBC201004A 1.0 1.2 4 50 4 2 EHSBC201005A 1.0 1.2 5 50 4 2 A07
