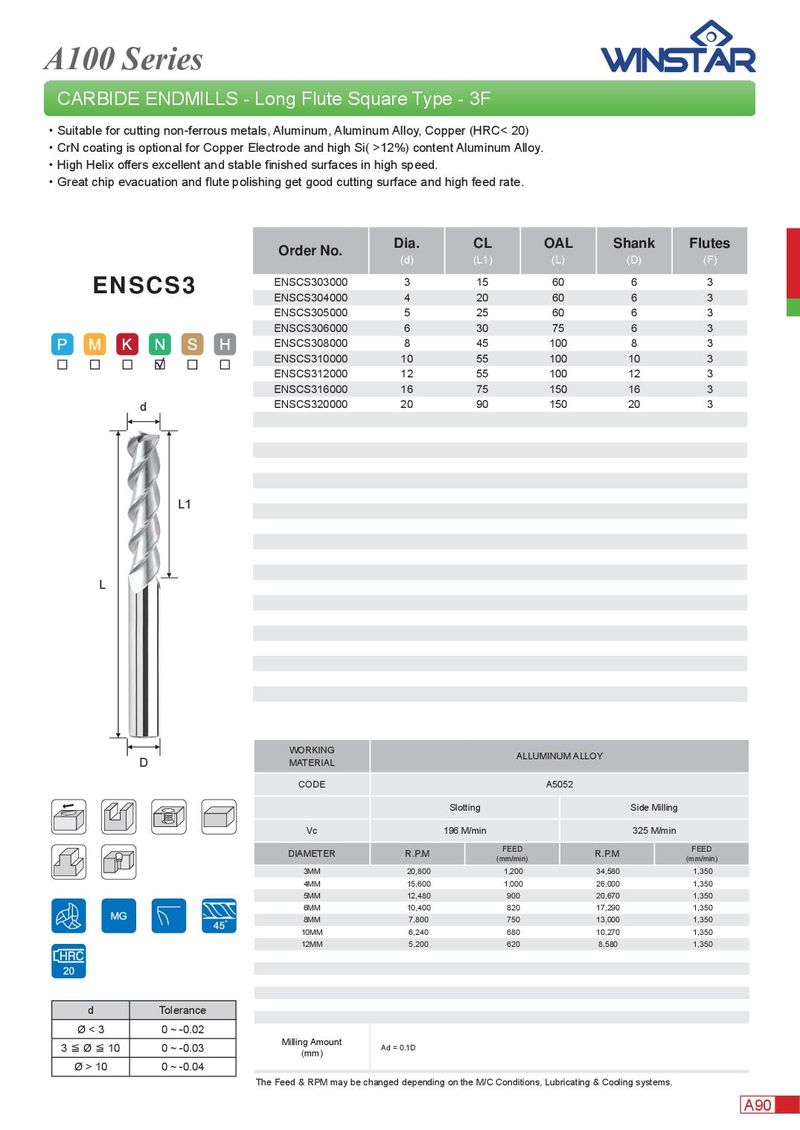

A100 Series CARBIDE ENDMILLS - Long Flute Square Type - 3F ． Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20) ． CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ． High Helix offers excellent and stable fi nished surfaces in high speed. ． Great chip evacuation and fl ute polishing get good cutting surface and high feed rate. Dia. CL OAL Shank Flutes Order No. (d) (L1) (L) (D) (F) ENSCS303000 3 15 60 6 3 ENSCS3 ENSCS304000 4 20 60 6 3 ENSCS305000 5 25 60 6 3 ENSCS306000 6 30 75 6 3 ENSCS308000 8 45 100 8 3 ENSCS310000 10 55 100 10 3 ENSCS312000 12 55 100 12 3 ENSCS316000 16 75 150 16 3 d ENSCS320000 20 90 150 20 3 L1 L WORKING ALLUMINUM ALLOY D MATERIAL CODE A5052 Slotting Side Milling Vc 196 M/min 325 M/min FEED FEED DIAMETER R.P.M (mm/min) R.P.M (mm/min) 3MM 20,800 1,200 34,580 1,350 4MM 15,600 1,000 26,000 1,350 5MM 12,480 900 20,670 1,350 6MM 10,400 820 17,290 1,350 8MM 7,800 750 13,000 1,350 10MM 6,240 680 10,270 1,350 12MM 5,200 620 8,580 1,350 d Tolerance Ø < 3 0 ~ -0.02 Milling Amount 3 ≦ Ø ≦ 10 0 ~ -0.03 Ad = 0.1D (mm) Ø > 10 0 ~ -0.04 The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems. A90
