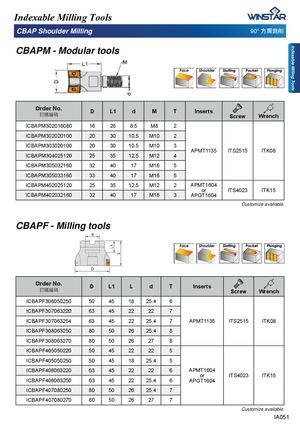

Indexable Milling Tools Indexable Milling Tools CBAP Shoulder Milling 90° 㝈券搠⏙ CBAPM - Modular tools Order No.宑庋佷䩋 D L1 d M T Inserts Screw Wrench ICBAPM302016080 16 26 8.5 M8 2 ICBAPM302020100 20 30 10.5 M10 2 ICBAPM303020100 20 30 10.5 M10 3 APMT1135 ITS2515 ITK08 ICBAPM304025120 25 35 12.5 M12 4 ICBAPM305032160 32 40 17 M16 5 ICBAPM305033160 33 40 17 M16 5 ICBAPM402025120 25 35 12.5 M12 2 APMT1604 or ITS4023 ITK15 ICBAPM402032160 32 40 17 M16 3 APGT1604 Customize available. CBAPF - Milling tools Order No.宑庋佷䩋 D L1 L d T Inserts Screw Wrench ICBAPF306050250 50 45 18 25.4 6 ICBAPF307063220 63 45 22 22 7 ICBAPF307063254 63 45 22 25.4 7 APMT1135 ITS2515 ITK08 ICBAPF308063250 80 50 26 25.4 8 ICBAPF308063270 80 50 26 27 8 ICBAPF405050220 50 45 22 22 5 ICBAPF405050250 50 45 18 25.4 5 ICBAPF406063220 63 45 22 22 6 APMT1604 or ITS4023 ITK15 ICBAPF406063250 63 45 22 25.4 6 APGT1604 ICBAPF407080250 80 50 26 25.4 7 ICBAPF407080270 80 50 26 27 7 Customize available. IA051
