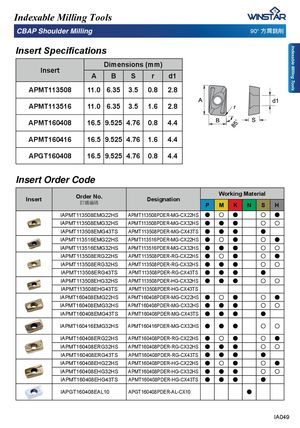

Indexable Milling Tools Indexable Milling Tools CBAP Shoulder Milling 90° 㝈券搠⏙ ,QVHUW6SHFL¿FDWLRQV Dimensions (mm) Insert A B S r d1 APMT113508 11.0 6.35 3.5 0.8 2.8 APMT113516 11.0 6.35 3.5 1.6 2.8 APMT160408 16.5 9.525 4.76 0.8 4.4 APMT160416 16.5 9.525 4.76 1.6 4.4 APGT160408 16.5 9.525 4.76 0.8 4.4 Insert Order Code Insert Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH IAPMT113508EMG22HS APMT113508PDER-MG-CX22HS β ΰ β ΰ β IAPMT113508EMG32HS APMT113508PDER-MG-CX32HS β β β ΰ ΰ IAPMT113508EMG43TS APMT113508PDER-MG-CX43TS β β β β IAPMT113516EMG22HS APMT113516PDER-MG-CX22HS β ΰ β ΰ β IAPMT113516EMG32HS APMT113516PDER-MG-CX32HS β β β ΰ ΰ IAPMT113508ERG22HS APMT113508PDER-RG-CX22HS β ΰ β ΰ β IAPMT113508ERG32HS APMT113508PDER-RG-CX32HS β β β ΰ ΰ IAPMT113508ERG43TS APMT113508PDER-RG-CX43TS β β β β IAPMT113508EHG32HS APMT113508PDER-HG-CX32HS β β β ΰ ΰ IAPMT113508EHG43TS APMT113508PDER-HG-CX43TS IAPMT160408EMG22HS APMT160408PDER-MG-CX22HS β ΰ β ΰ β IAPMT160408EMG32HS APMT160408PDER-MG-CX32HS β β β ΰ ΰ IAPMT160408EMG43TS APMT160408PDER-MG-CX43TS β β β β IAPMT160416EMG32HS APMT160416PDER-MG-CX32HS β β β ΰ ΰ IAPMT160408ERG22HS APMT160408PDER-RG-CX22HS β ΰ β ΰ β IAPMT160408ERG32HS APMT160408PDER-RG-CX32HS β β β ΰ ΰ IAPMT160408ERG43TS APMT160408PDER-RG-CX43TS β β β β IAPMT160408EHG22HS APMT160408PDER-HG-CX22HS β ΰ β ΰ β IAPMT160408EHG32HS APMT160408PDER-HG-CX32HS β β β ΰ ΰ IAPMT160408EHG43TS APMT160408PDER-HG-CX43TS β β β β IAPGT160408EAL10 APGT160408PDER-AL-CX10 β IA049
