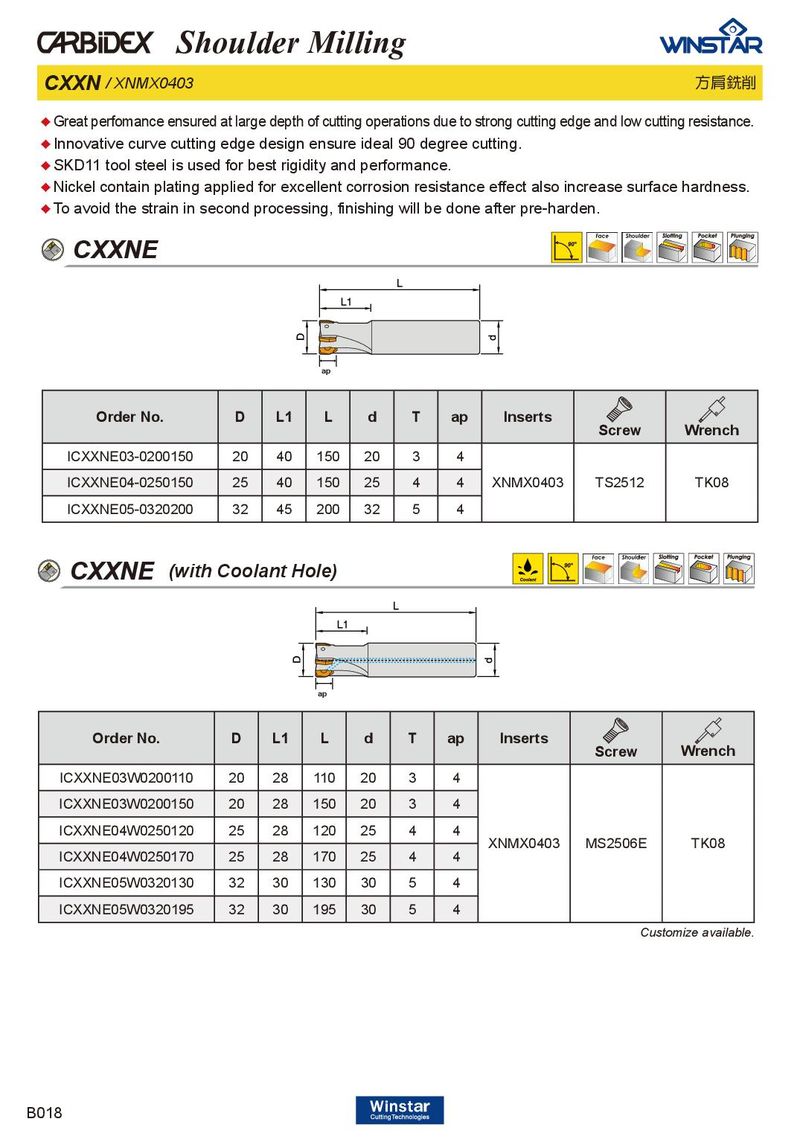

Shoulder Milling CXXN / XNMX0403 方肩銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. CXXNE ap Order No. D L1 L d T ap Inserts Screw Wrench ICXXNE03-0200150 20 40 150 20 3 4 ICXXNE04-0250150 25 40 150 25 4 4 XNMX0403 TS2512 TK08 ICXXNE05-0320200 32 45 200 32 5 4 CXXNE (with Coolant Hole) ap Order No. D L1 L d T ap Inserts Screw Wrench ICXXNE03W0200110 20 28 110 20 3 4 ICXXNE03W0200150 20 28 150 20 3 4 ICXXNE04W0250120 25 28 120 25 4 4 XNMX0403 MS2506E TK08 ICXXNE04W0250170 25 28 170 25 4 4 ICXXNE05W0320130 32 30 130 30 5 4 ICXXNE05W0320195 32 30 195 30 5 4 Customize available. B018
