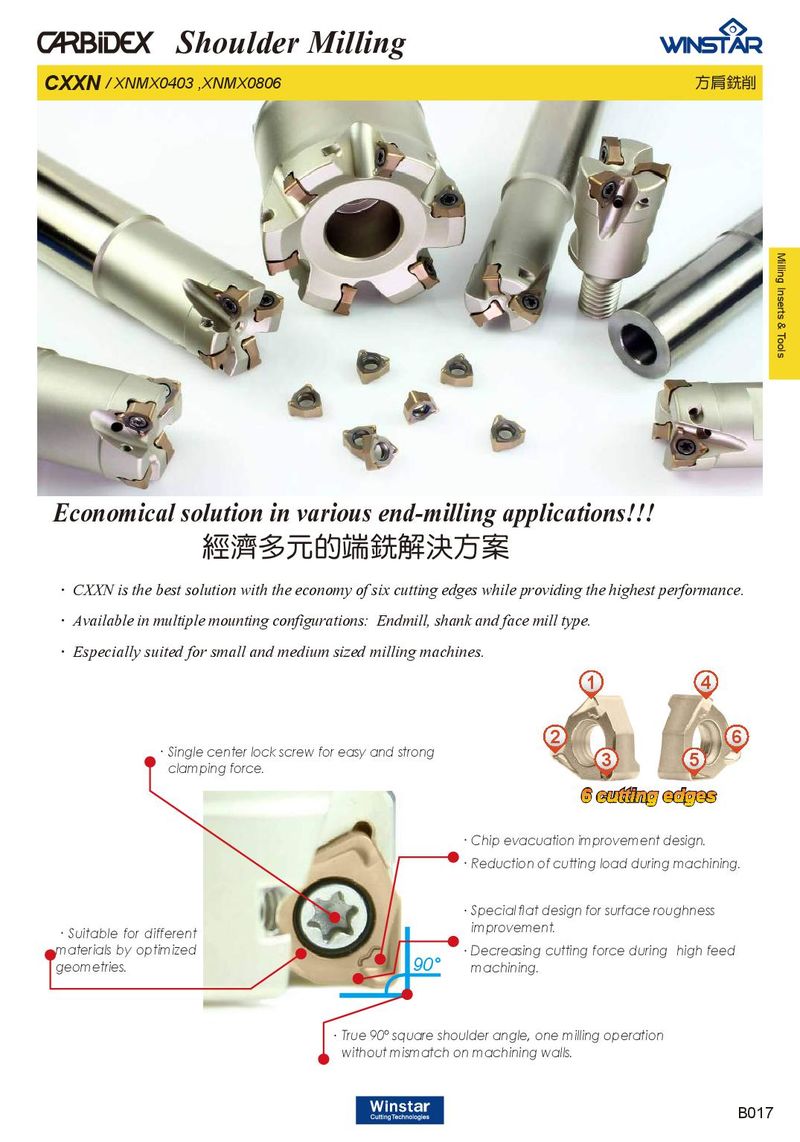

Shoulder Milling CXXN / XNMX0403 ,XNMX0806 方肩銑削 Milling Inserts & Tools Economical solution in various end-milling applications!!! 經濟多元的端銑解決方案 ． CXXN is the best solution with the economy of six cutting edges while providing the highest performance. ． Available in multiple mounting configurations: Endmill, shank and face mill type. ． Especially suited for small and medium sized milling machines. 1 4 2 6 ． Single center lock screw for easy and strong 3 5 　 clamping force. 6 cutting edges ． Chip evacuation improvement design. ． Reduction of cutting load during machining. ． Special flat design for surface roughness 　 improvement. ． Suitable for different materials by optimized ． Decreasing cutting force during high feed geometries. 90° 　 machining. ． True 90° square shoulder angle, one milling operation 　 without mismatch on machining walls. B017
