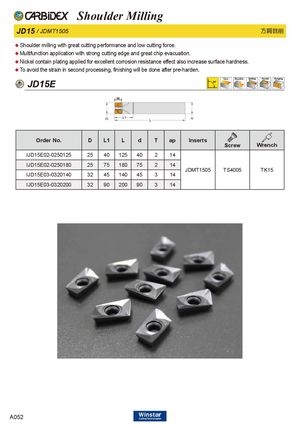

Shoulder Milling JD15 / JDMT1505 方肩銑削 ♦ Shoulder milling with great cutting performance and low cutting force. ♦ Multifunction application with strong cutting edge and great chip evacuation. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. JD15E ap Order No. D L1 L d T ap Inserts Screw Wrench IJD15E02-0250125 25 40 125 40 2 14 IJD15E02-0250180 25 75 180 75 2 14 JDMT1505 TS4005 TK15 IJD15E03-0320140 32 45 140 45 3 14 IJD15E03-0320200 32 90 200 90 3 14 A052
