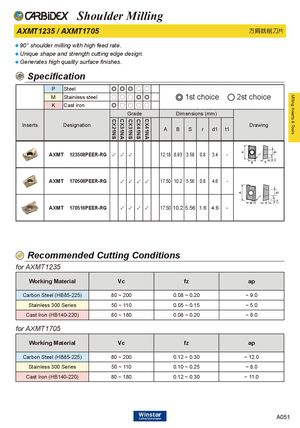

CX21NS CX31NA CX31NS CX41NS CX41NA Milling Inserts & Tools Shoulder Milling AXMT1235 / AXMT1705 方肩銑削刀片 ♦ 90° shoulder milling with high feed rate. ♦ Unique shape and strength cutting edge design. ♦ Generates high quality surface finishes. Specification P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) Inserts Designation Drawing A B S r d1 t1 AXMT 123508PEER-RG ✓ ✓ ✓ 12.18 6.93 3.58 0.8 3.4 - AXMT 170508PEER-RG ✓ ✓ ✓ ✓ 17.50 10.2 5.56 0.8 4.6 - AXMT 170516PEER-RG ✓ ✓ ✓ ✓ 17.50 10.2 5.56 1.6 4.6 - Recommended Cutting Conditions for AXMT1235 Working Material Vc fz ap Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 9.0 Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 5.0 Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 8.0 for AXMT1705 Working Material Vc fz ap Carbon Steel (HB85-225) 80 ~ 200 0.12 ~ 0.30 ~ 12.0 Stainless 300 Series 50 ~ 110 0.10 ~ 0.25 ~ 8.0 Cast Iron (HB140-220) 80 ~ 180 0.12 ~ 0.30 ~ 11.0 A051
