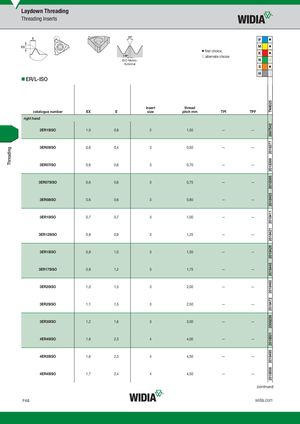

Threading TN6025200754220183772018389201839520184032018411201842120184292018445201846020184722008256201850120184952018508 Laydown Threading Threading Inserts P ⅷ M ⅷ ⅷ first choice K ⅷ ࠗ alternate choice ISO Metric- N ࠗ External S ⅷ H „ER/L-ISO insert thread catalogue number EX E size pitch mm TPI TPF right hand 2ER15ISO 1,0 0,8 2 1,50 — — 3ER05ISO 0,6 0,4 3 0,50 — — 3ER07ISO 0,6 0,6 3 0,70 — — 3ER075ISO 0,6 0,6 3 0,75 — — 3ER08ISO 0,6 0,6 3 0,80 — — 3ER10ISO 0,7 0,7 3 1,00 — — 3ER125ISO 0,8 0,9 3 1,25 — — 3ER15ISO 0,8 1,0 3 1,50 — — 3ER175ISO 0,9 1,2 3 1,75 — — 3ER20ISO 1,0 1,3 3 2,00 — — 3ER25ISO 1,1 1,5 3 2,50 — — 3ER30ISO 1,2 1,6 3 3,00 — — 4ER40ISO 1,6 2,3 4 4,00 — — 4ER35ISO 1,6 2,3 4 4,50 — — 4ER45ISO 1,7 2,4 4 4,50 — — (continued) F48 widia.com
