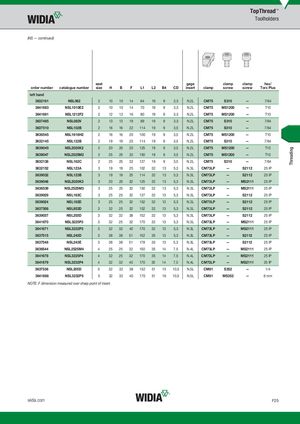

Threading TopThread™ Toolholders (NS — continued) seat gage clamp clamp hex/ order number catalogue number size H B F L1 L2 B4 CD insert clamp screw screw Torx Plus left hand 3632161 NSL062 2 10 10 14 64 19 9 3,5 N.2L CM75 S310 — 7/64 3641683 NSL1010E2 2 10 10 14 70 19 9 3,5 N.2L CM75 MS1200 — T10 3641681 NSL1212F2 2 12 12 16 80 19 9 3,5 N.2L CM75 MS1200 — T10 3637485 NSL082V 2 13 13 19 89 19 9 3,5 N.2L CM75 S310 — 7/64 3637510 NSL102B 2 16 16 22 114 19 9 3,5 N.2L CM75 S310 — 7/64 3636545 NSL1616H2 2 16 16 20 100 19 9 3,5 N.2L CM75 MS1200 — T10 3632145 NSL122B 2 19 19 25 114 19 9 3,5 N.2L CM75 S310 — 7/64 3639045 NSL2020K2 2 20 20 25 125 19 9 3,5 N.2L CM75 MS1200 — T10 3639047 NSL2525M2 2 25 25 32 150 19 9 3,5 N.2L CM75 MS1200 — T10 3632138 NSL162C 2 25 25 32 127 19 9 3,5 N.2L CM75 S310 — 7/64 3632152 NSL123A 3 19 19 25 102 32 13 5,3 N.3L CM73LP — S2112 25 IP 3639032 NSL123B 3 19 19 25 114 32 13 5,3 N.3L CM73LP — S2112 25 IP 3639046 NSL2020K3 3 20 20 32 125 32 13 5,3 N.3L CM73LP — MS2111 25 IP 3636539 NSL2525M3 3 25 25 32 150 32 13 5,3 N.3L CM73LP — MS2111 25 IP 3639029 NSL163C 3 25 25 32 127 32 13 5,3 N.3L CM73LP — S2112 25 IP 3639024 NSL163D 3 25 25 32 152 32 13 5,3 N.3L CM73LP — S2112 25 IP 3637508 NSL853D 3 32 25 32 152 32 13 5,3 N.3L CM73LP — S2112 25 IP 3639037 NSL203D 3 32 32 38 152 32 13 5,3 N.3L CM73LP — S2112 25 IP 3641670 NSL3225P3 3 32 25 32 170 32 13 5,3 N.3L CM73LP — MS2111 25 IP 3641671 NSL3232P3 3 32 32 40 170 32 13 5,3 N.3L CM73LP — MS2111 25 IP 3637515 NSL243D 3 38 38 51 152 35 13 5,3 N.3L CM73LP — S2112 25 IP 3637548 NSL243E 3 38 38 51 178 35 13 5,3 N.3L CM73LP — S2112 25 IP 3636544 NSL2525M4 4 25 25 32 150 35 14 7,5 N.4L CM73LP — MS2111 25 IP 3641678 NSL3225P4 4 32 25 32 170 35 14 7,5 N.4L CM73LP — MS2111 25 IP 3641679 NSL3232P4 4 32 32 40 170 35 14 7,5 N.4L CM73LP — MS2111 25 IP 3637536 NSL205D 5 32 32 38 152 51 15 10,5 N.5L CM81 S352 — 1/4 3641688 NSL3232P5 5 32 32 40 170 51 16 10,5 N.5L CM81 MS352 — 6 mm NOTE: F dimension measured over sharp point of insert. widia.com F25
