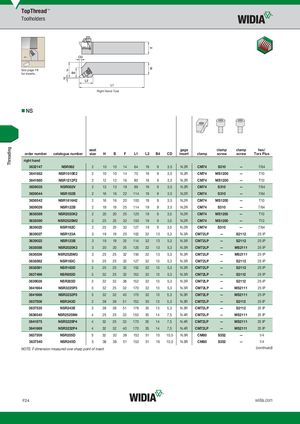

Threading TopThread™ Toolholders See page F8 for inserts. Right Hand Tool „NS seat gage clamp clamp hex/ order number catalogue number size H B F L1 L2 B4 CD insert clamp screw screw Torx Plus right hand 3632147 NSR062 2 10 10 14 64 19 9 3,5 N.2R CM74 S310 — 7/64 3641682 NSR1010E2 2 10 10 14 70 19 9 3,5 N.2R CM74 MS1200 — T10 3641660 NSR1212F2 2 12 12 16 80 19 9 3,5 N.2R CM74 MS1200 — T10 3639035 NSR082V 2 13 13 19 89 19 9 3,5 N.2R CM74 S310 — 7/64 3639044 NSR102B 2 16 16 22 114 19 9 3,5 N.2R CM74 S310 — 7/64 3636542 NSR1616H2 2 16 16 20 100 19 9 3,5 N.2R CM74 MS1200 — T10 3639026 NSR122B 2 19 19 25 114 19 9 3,5 N.2R CM74 S310 — 7/64 3638589 NSR2020K2 2 20 20 25 125 19 9 3,5 N.2R CM74 MS1200 — T10 3638590 NSR2525M2 2 25 25 32 150 19 9 3,5 N.2R CM74 MS1200 — T10 3639025 NSR162C 2 25 25 32 127 19 9 3,5 N.2R CM74 S310 — 7/64 3639027 NSR123A 3 19 19 25 102 32 13 5,3 N.3R CM72LP — S2112 25 IP 3639023 NSR123B 3 19 19 25 114 32 13 5,3 N.3R CM72LP — S2112 25 IP 3638588 NSR2020K3 3 20 20 25 125 32 13 5,3 N.3R CM72LP — MS2111 25 IP 3636536 NSR2525M3 3 25 25 32 150 32 13 5,3 N.3R CM72LP — MS2111 25 IP 3638592 NSR163C 3 25 25 32 127 32 13 5,3 N.3R CM72LP — S2112 25 IP 3638591 NSR163D 3 25 25 32 152 32 13 5,3 N.3R CM72LP — S2112 25 IP 3637496 NSR853D 3 32 25 32 152 32 13 5,3 N.3R CM72LP — S2112 25 IP 3639028 NSR203D 3 32 32 38 152 32 13 5,3 N.3R CM72LP — S2112 25 IP 3641664 NSR3225P3 3 32 25 32 170 32 13 5,3 N.3R CM72LP — MS2111 25 IP 3641666 NSR3232P3 3 32 32 40 170 32 13 5,3 N.3R CM72LP — MS2111 25 IP 3637506 NSR243D 3 38 38 51 152 35 13 5,3 N.3R CM72LP — S2112 25 IP 3637535 NSR243E 3 38 38 51 178 35 13 5,3 N.3R CM72LP — S2112 25 IP 3636540 NSR2525M4 4 25 25 32 150 35 14 7,5 N.4R CM72LP — MS2111 25 IP 3641675 NSR3225P4 4 32 25 32 170 35 14 7,5 N.4R CM72LP — MS2111 25 IP 3641669 NSR3232P4 4 32 32 40 170 35 14 7,5 N.4R CM72LP — MS2111 25 IP 3637509 NSR205D 5 32 32 38 152 51 15 10,5 N.5R CM80 S352 — 1/4 3637540 NSR245D 5 38 38 51 152 51 16 10,5 N.5R CM80 S352 — 1/4 NOTE: F dimension measured over sharp point of insert. (continued) F24 widia.com
