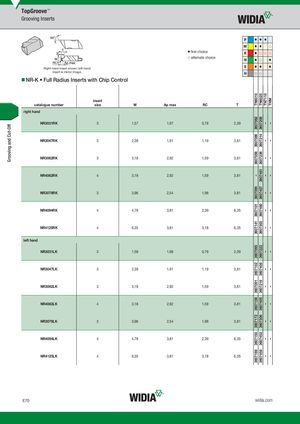

Grooving and Cut-Off TN6010360706236070863607056–3607094360710136071413607095360710236070913607156360717236071503607166 TN602536072063607214360723636074613607407360748036073033607222360740836072163607405360730636074523607458 TN7110–––––––––––––– THM–––––––––––––– TopGroove™ Grooving Inserts P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ Right-hand insert shown; left-hand S ⅷ ⅷ ⅷ insert is mirror image. H ࠗ ࠗ NR-K • Full Radius Inserts with Chip Control insert catalogue number size W Ap max RC T right hand NR3031RK 3 1,57 1,97 0,79 2,39 NR3047RK 3 2,39 1,91 1,19 3,81 NR3062RK 3 3,18 2,92 1,59 3,81 NR4062RK 4 3,18 2,92 1,59 3,81 NR3078RK 3 3,96 2,54 1,98 3,81 NR4094RK 4 4,78 3,81 2,39 6,35 NR4125RK 4 6,35 3,81 3,18 6,35 left hand NR3031LK 3 1,58 1,98 0,79 2,39 NR3047LK 3 2,39 1,91 1,19 3,81 NR3062LK 3 3,18 2,92 1,59 3,81 NR4062LK 4 3,18 2,92 1,59 3,81 NR3078LK 3 3,96 2,54 1,98 3,81 NR4094LK 4 4,78 3,81 2,39 6,35 NR4125LK 4 6,35 3,81 3,18 6,35 E70 widia.com
