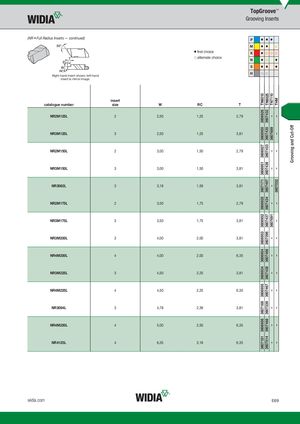

TN601036069263606950360692736069513607171360692836069523606953360695436069343606955360716936069563607181 TN602536074323607435360743336074363607497360743436074373607396360746636074383607467360733936074683607514 TN7110–3607689––––3607691––––––– THM––––3607032––––––––– Grooving and Cut-Off TopGroove™ Grooving Inserts (NR • Full Radius Inserts — continued) P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ H ࠗ ࠗ Right-hand insert shown; left-hand insert is mirror image. insert catalogue number size W RC T NR2M125L 2 2,50 1,25 2,79 NR3M125L 3 2,50 1,25 3,81 NR2M150L 2 3,00 1,50 2,79 NR3M150L 3 3,00 1,50 3,81 NR3062L 3 3,18 1,59 3,81 NR2M175L 2 3,50 1,75 2,79 NR3M175L 3 3,50 1,75 3,81 NR3M200L 3 4,00 2,00 3,81 NR4M200L 4 4,00 2,00 6,35 NR3M225L 3 4,50 2,25 3,81 NR4M225L 4 4,50 2,25 6,35 NR3094L 3 4,78 2,39 3,81 NR4M250L 4 5,00 2,50 6,35 NR4125L 4 6,35 3,18 6,35 widia.com E69
