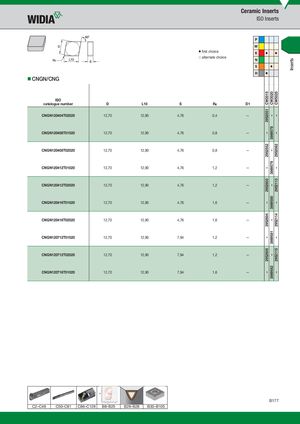

CW20152952551–2952552–2952603–2952604–2952605– CW3020–3869578–3869579–3869580–3869581–3869582 CW5025––2952082–2952113–2952114–2952115– Inserts Ceramic Inserts ISO Inserts P M ⅷ first choice K ⅷ ⅷ ࠗ alternate choice N S ⅷ H ⅷ „CNGN/CNG ISO catalogue number D L10 S R¡ D1 CNGN120404T02020 12,70 12,90 4,76 0,4 — CNGN120408T01020 12,70 12,90 4,76 0,8 — CNGN120408T02020 12,70 12,90 4,76 0,8 — CNGN120412T01020 12,70 12,90 4,76 1,2 — CNGN120412T02020 12,70 12,90 4,76 1,2 — CNGN120416T01020 12,70 12,90 4,76 1,6 — CNGN120416T02020 12,70 12,90 4,76 1,6 — CNGN120712T01020 12,70 12,90 7,94 1,2 — CNGN120712T02020 12,70 12,90 7,94 1,2 — CNGN120716T01020 12,70 12,90 7,94 1,6 — B177 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
