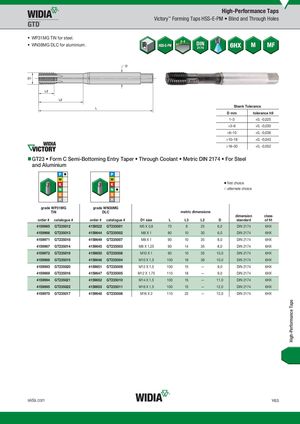

High-Performance Taps Victory™ Forming Taps HSS-E-PM • Blind and Through Holes • WP31MG TiN for steel. • WN38MG DLC for aluminium. Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052 „GT23 • Form C Semi-Bottoming Entry Taper • Through Coolant • Metric DIN 2174 • For Steel and Aluminium ⅷ first choice ࠗ alternate choice gradWePW31PM31GMG gradWeNW38NM38GMG TiN DLC metric dimensions dimension class order # catalogue # order # catalogue # D1 size L L3 L2 D standard of fit 4159965 GT235012 4159522 GT235001 M5 X 0,8 70 8 25 6,0 DIN 2174 6HX 4159966 GT235013 4159644 GT235002 M6 X 1 80 10 30 6,0 DIN 2174 6HX 4159971 GT235018 4159649 GT235007 M8 X 1 90 10 35 8,0 DIN 2174 6HX 4159967 GT235014 4159645 GT235003 M8 X 1,25 90 14 35 8,0 DIN 2174 6HX 4159972 GT235019 4159650 GT235008 M10 X 1 90 10 35 10,0 DIN 2174 6HX 4159968 GT235015 4159646 GT235004 M10 X 1,5 100 16 39 10,0 DIN 2174 6HX 4159993 GT235020 4159651 GT235009 M12 X 1,5 100 15 — 9,0 DIN 2174 6HX 4159969 GT235016 4159647 GT235005 M12 X 1,75 110 18 — 9,0 DIN 2174 6HX 4159994 GT235021 4159652 GT235010 M14 X 1,5 100 15 — 11,0 DIN 2174 6HX 4159995 GT235022 4159653 GT235011 M16 X 1,5 100 15 — 12,0 DIN 2174 6HX 4159970 GT235017 4159648 GT235006 M16 X 2 110 22 — 12,0 DIN 2174 6HX widia.com Y63 High-Performance Taps
