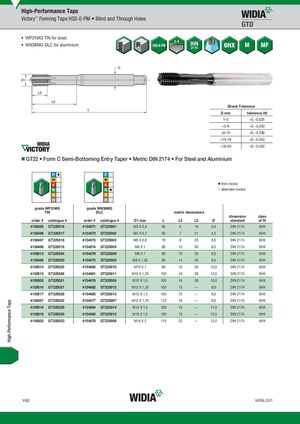

High-Performance Taps Victory™ Forming Taps HSS-E-PM • Blind and Through Holes • WP31MG TiN for steel. • WN38MG DLC for aluminium. Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052 „GT22 • Form C Semi-Bottoming Entry Taper • Metric DIN 2174 • For Steel and Aluminium ⅷ first choice ࠗ alternate choice graWdePW31PM3G1MG gradWeNW38NM38GMG TiN DLC metric dimensions dimension class order # catalogue # order # catalogue # D1 size L L3 L2 D standard of fit 4158495 GT225016 4154671 GT225001 M3 X 0,5 56 6 18 3,5 DIN 2174 6HX 4158496 GT225017 4154672 GT225002 M4 X 0,7 63 7 21 4,5 DIN 2174 6HX 4158497 GT225018 4154673 GT225003 M5 X 0,8 70 8 25 6,0 DIN 2174 6HX 4158498 GT225019 4154674 GT225004 M6 X 1 80 10 30 6,0 DIN 2174 6HX 4158513 GT225024 4154679 GT225009 M8 X 1 90 10 35 8,0 DIN 2174 6HX 4158499 GT225020 4154675 GT225005 M8 X 1,25 90 14 35 8,0 DIN 2174 6HX 4158514 GT225025 4154680 GT225010 M10 X 1 90 10 35 10,0 DIN 2174 6HX 4158515 GT225026 4154681 GT225011 M10 X 1,25 100 16 39 10,0 DIN 2174 6HX 4158500 GT225021 4154676 GT225006 M10 X 1,5 100 16 39 10,0 DIN 2174 6HX 4158516 GT225027 4154682 GT225012 M12 X 1,25 100 15 — 9,0 DIN 2174 6HX 4158517 GT225028 4154683 GT225013 M12 X 1,5 100 15 — 9,0 DIN 2174 6HX 4158501 GT225022 4154677 GT225007 M12 X 1,75 110 18 — 9,0 DIN 2174 6HX 4158518 GT225029 4154684 GT225014 M14 X 1,5 100 15 — 11,0 DIN 2174 6HX 4158519 GT225030 4154685 GT225015 M16 X 1,5 100 15 — 12,0 DIN 2174 6HX 4158502 GT225023 4154678 GT225008 M16 X 2 110 22 — 12,0 DIN 2174 6HX Y62 widia.com High-Performance Taps
