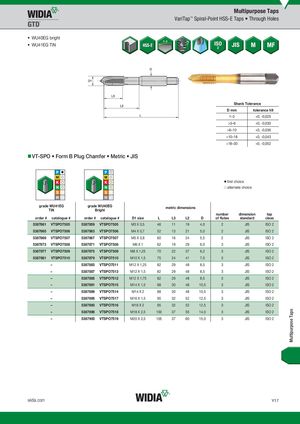

Multipurpose Taps VariTap™ Spiral-Point HSS-E Taps • Through Holes • WU40EG bright 3–5 • WU41EG TiN Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052 „VT-SPO • Form B Plug Chamfer • Metric • JIS ⅷ first choice ࠗ alternate choice graWdeUW41UE4G1EG graWdeUW40UE4G0EGTiNBright metric dimensions number dimension tap order # catalogue # order # catalogue # D1 size L L3 L2 D of flutes standard class 5387861 VTSPO7505 5387859 VTSPO7505 M3 X 0,5 46 11 19 4,0 2 JIS ISO 2 5387865 VTSPO7506 5387863 VTSPO7506 M4 X 0,7 52 13 21 5,0 2 JIS ISO 2 5387869 VTSPO7507 5387867 VTSPO7507 M5 X 0,8 60 16 24 5,5 2 JIS ISO 2 5387873 VTSPO7508 5387871 VTSPO7508 M6 X 1 62 19 29 6,0 3 JIS ISO 2 5387877 VTSPO7509 5387875 VTSPO7509 M8 X 1,25 70 22 37 6,2 3 JIS ISO 2 5387881 VTSPO7510 5387879 VTSPO7510 M10 X 1,5 75 24 41 7,0 3 JIS ISO 2 – 5387883 VTSPO7511 M12 X 1,25 82 29 48 8,5 3 JIS ISO 2 – 5387887 VTSPO7513 M12 X 1,5 82 29 48 8,5 3 JIS ISO 2 – 5387885 VTSPO7512 M12 X 1,75 82 29 48 8,5 3 JIS ISO 2 – 5387891 VTSPO7515 M14 X 1,5 88 30 48 10,5 3 JIS ISO 2 – 5387889 VTSPO7514 M14 X 2 88 30 48 10,5 3 JIS ISO 2 – 5387895 VTSPO7517 M16 X 1,5 95 32 52 12,5 3 JIS ISO 2 – 5387893 VTSPO7516 M16 X 2 95 32 52 12,5 3 JIS ISO 2 – 5387898 VTSPO7518 M18 X 2,5 100 37 55 14,0 3 JIS ISO 2 – 5387900 VTSPO7519 M20 X 2,5 105 37 60 15,0 3 JIS ISO 2 widia.com Y17 Multipurpose Taps
