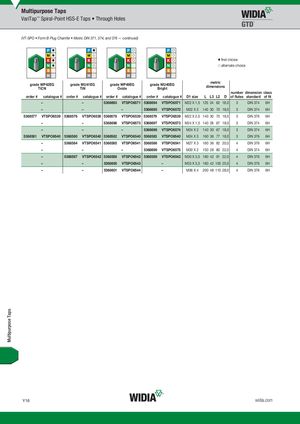

Multipurpose Taps VariTap™ Spiral-Point HSS-E Taps • Through Holes (VT-SPO • Form B Plug Chamfer • Metric DIN 371, 374, and 376 — continued) ⅷ first choice ࠗ alternate choice graWdePW42PE4G2EG graWdeUW41UE4G1EG graWdePW49PE4G9EG graWdeUW40UE4G0EGTiCNTiNOxideBright metricdimensions number dimension class order # catalogue # order # catalogue # order # catalogue # order # catalogue # D1 size L L3 L2 D of flutes standard of fit – – 5368693 VTSPO6571 5368694 VTSPO6571 M22 X 1,5 125 24 62 18,0 3 DIN 374 6H – – – 5368695 VTSPO6572 M22 X 2 140 30 70 18,0 3 DIN 374 6H 5368577 VTSPO6539 5368576 VTSPO6539 5368578 VTSPO6539 5368579 VTSPO6539 M22 X 2,5 140 30 70 18,0 3 DIN 376 6H – – 5368696 VTSPO6573 5368697 VTSPO6573 M24 X 1,5 140 28 67 18,0 3 DIN 374 6H – – – 5368698 VTSPO6574 M24 X 2 140 30 67 18,0 3 DIN 374 6H 5368581 VTSPO6540 5368580 VTSPO6540 5368582 VTSPO6540 5368583 VTSPO6540 M24 X 3 160 36 77 18,0 3 DIN 376 6H – 5368584 VTSPO6541 5368585 VTSPO6541 5368586 VTSPO6541 M27 X 3 160 36 82 20,0 4 DIN 376 6H – – – 5368699 VTSPO6575 M30 X 2 150 28 80 22,0 4 DIN 374 6H – 5368587 VTSPO6542 5368588 VTSPO6542 5368589 VTSPO6542 M30 X 3,5 180 42 91 22,0 4 DIN 376 6H – – 5368600 VTSPO6543 – M33 X 3,5 180 42 100 25,0 4 DIN 376 6H – – 5368601 VTSPO6544 – M36 X 4 200 48 110 28,0 4 DIN 376 6H Y16 widia.com Multipurpose Taps
