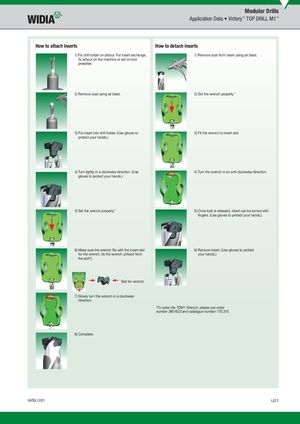

Modular Drills Application Data • Victory™ TOP DRILL M1™ How to attach inserts How to detach inserts 1) Fix drill holder on arbour. For insert exchange, 1) Remove dust from insert using air blast. fix arbour on the machine or set on tool presetter. 2) Remove dust using air blast. 2) Set the wrench properly.* 3) Put insert into drill holder. (Use gloves to 3) Fit the wrench to insert slot. protect your hands.) 4) Turn lightly in a clockwise direction. (Use 4) Turn the wrench in an anti-clockwise direction. gloves to protect your hands.) 5) Set the wrench properly.* 5) Once lock is released, insert can be turned with fingers. (Use gloves to protect your hands.) 6) Make sure the wrench fits with the insert slot 6) Remove insert. (Use gloves to protect for the wrench. (Is the wrench unfixed from your hands.) the slot?) Slot for wrench 7) Slowly turn the wrench in a clockwise direction. *To order the TDM1 Wrench, please use order number 3861623 and catalogue number 170.315. 8) Complete. widia.com U21
