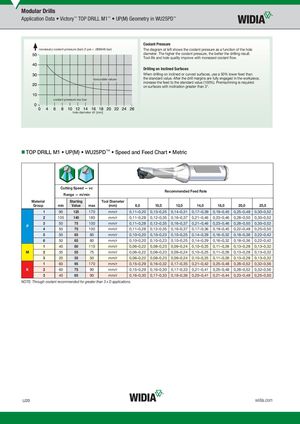

Modular Drills Application Data • Victory™ TOP DRILL M1™ • UP(M) Geometry in WU25PD™ Coolant Pressure necessary coolant pressure (bar) (1 psi = .068948 bar) The diagram at left shows the coolant pressure as a function of the hole diameter. The higher the coolant pressure, the better the drilling result. Tool life and hole quality improve with increased coolant flow. Drilling on Inclined Surfaces When drilling on inclined or curved surfaces, use a 50% lower feed than favourable values the standard value. After the drill margins are fully engaged in the workpiece, increase the feed to the standard value (100%). Premachining is required on surfaces with inclination greater than 3°. coolant pressure too low hole diameter d1 [mm] „TOP DRILL M1 • UP(M) • WU25PD™ • Speed and Feed Chart • Metric Cutting Speed — vc Recommended Feed Rate Range — m/min Material Starting Tool Diameter Group min Value max (mm) 8,0 10,0 12,0 14,0 16,0 20,0 25,0 1 90 125 170 mm/r 0,11–0,20 0,13–0,25 0,14–0,31 0,17–0,39 0,19–0,45 0,25–0,48 0,30–0,52 2 105 140 180 mm/r 0,11–0,28 0,12–0,35 0,16–0,37 0,21–0,46 0,23–0,46 0,28–0,50 0,30–0,52 3 50 75 100 mm/r 0,11–0,28 0,12–0,35 0,16–0,37 0,21–0,46 0,23–0,46 0,28–0,50 0,30–0,52 P 4 50 75 100 mm/r 0,11–0,28 0,12–0,35 0,16–0,37 0,17–0,36 0,19–0,45 0,22–0,48 0,25–0,50 5 50 65 80 mm/r 0,10–0,20 0,10–0,23 0,10–0,25 0,14–0,29 0,16–0,32 0,18–0,36 0,22–0,42 6 50 65 80 mm/r 0,10–0,20 0,10–0,23 0,10–0,25 0,14–0,29 0,16–0,32 0,18–0,36 0,22–0,42 1 40 80 110 mm/r 0,06–0,22 0,08–0,23 0,09–0,24 0,10–0,25 0,11–0,26 0,13–0,28 0,13–0,32 M 2 35 55 75 mm/r 0,06–0,22 0,08–0,23 0,09–0,24 0,10–0,25 0,11–0,26 0,13–0,28 0,13–0,32 3 20 35 50 mm/r 0,06–0,22 0,08–0,23 0,09–0,24 0,10–0,25 0,11–0,26 0,13–0,28 0,13–0,32 1 60 95 170 mm/r 0,15–0,29 0,16–0,32 0,17–0,35 0,21–0,42 0,25–0,48 0,28–0,52 0,32–0,56 K 2 60 75 90 mm/r 0,15–0,29 0,16–0,30 0,17–0,33 0,21–0,41 0,25–0,48 0,28–0,52 0,32–0,56 3 40 65 90 mm/r 0,16–0,30 0,17–0,33 0,18–0,36 0,20–0,41 0,21–0,44 0,23–0,48 0,25–0,50 NOTE: Through coolant recommended for greater than 3 x D applications. U20 widia.com
