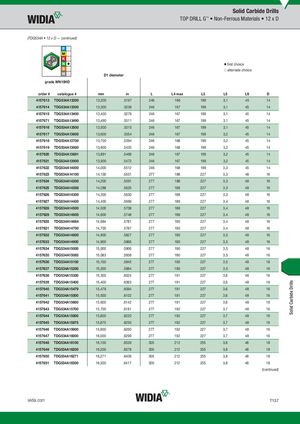

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 12 x D (TDG534A • 12 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4157613 TDG534A13200 13,200 .5197 246 166 199 3,1 45 14 4157614 TDG534A13300 13,300 .5236 246 167 199 3,1 45 14 4157615 TDG534A13400 13,400 .5276 246 167 199 3,1 45 14 4157671 TDG534A13490 13,490 .5311 246 167 199 3,1 45 14 4157616 TDG534A13500 13,500 .5315 246 167 199 3,1 45 14 4157617 TDG534A13600 13,600 .5354 246 167 199 3,2 45 14 4157618 TDG534A13700 13,700 .5394 246 168 199 3,2 45 14 4157619 TDG534A13800 13,800 .5433 246 168 199 3,2 45 14 4157620 TDG534A13891 13,891 .5469 246 167 199 3,2 45 14 4157621 TDG534A13900 13,900 .5472 246 167 199 3,2 45 14 4157622 TDG534A14000 14,000 .5512 246 168 199 3,3 45 14 4157623 TDG534A14100 14,100 .5551 277 188 227 3,3 48 16 4157624 TDG534A14200 14,200 .5591 277 188 227 3,3 48 16 4157625 TDG534A14288 14,288 .5625 277 188 227 3,3 48 16 4157626 TDG534A14300 14,300 .5630 277 188 227 3,3 48 16 4157627 TDG534A14400 14,400 .5669 277 189 227 3,4 48 16 4157628 TDG534A14500 14,500 .5709 277 189 227 3,4 48 16 4157629 TDG534A14600 14,600 .5748 277 189 227 3,4 48 16 4157630 TDG534A14684 14,684 .5781 277 190 227 3,4 48 16 4157631 TDG534A14700 14,700 .5787 277 190 227 3,4 48 16 4157632 TDG534A14800 14,800 .5827 277 190 227 3,5 48 16 4157633 TDG534A14900 14,900 .5866 277 190 227 3,5 48 16 4157634 TDG534A15000 15,000 .5906 277 190 227 3,5 48 16 4157635 TDG534A15083 15,083 .5938 277 190 227 3,5 48 16 4157636 TDG534A15100 15,100 .5945 277 190 227 3,5 48 16 4157637 TDG534A15200 15,200 .5984 277 190 227 3,5 48 16 4157638 TDG534A15300 15,300 .6024 277 191 227 3,6 48 16 4157639 TDG534A15400 15,400 .6063 277 191 227 3,6 48 16 4157640 TDG534A15479 15,479 .6094 277 191 227 3,6 48 16 4157641 TDG534A15500 15,500 .6102 277 191 227 3,6 48 16 4157642 TDG534A15600 15,600 .6142 277 191 227 3,6 48 16 4157643 TDG534A15700 15,700 .6181 277 192 227 3,7 48 16 4157644 TDG534A15800 15,800 .6220 277 192 227 3,7 48 16 4157645 TDG534A15875 15,875 .6250 277 192 227 3,7 48 16 4157646 TDG534A15900 15,900 .6260 277 192 227 3,7 48 16 4157647 TDG534A16000 16,000 .6299 277 192 227 3,7 48 16 4157648 TDG534A16100 16,100 .6339 305 212 255 3,8 48 18 4157649 TDG534A16200 16,200 .6378 305 212 255 3,8 48 18 4157650 TDG534A16271 16,271 .6406 305 212 255 3,8 48 18 4157651 TDG534A16300 16,300 .6417 305 212 255 3,8 48 18 (continued) widia.com T137 Solid Carbide Drills
