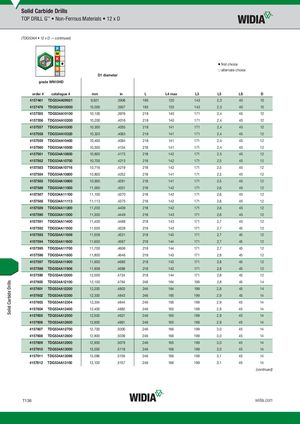

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 12 x D (TDG534A • 12 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4157461 TDG534A09921 9,921 .3906 185 120 143 2,3 40 10 4157476 TDG534A10000 10,000 .3937 185 120 143 2,3 40 10 4157555 TDG534A10100 10,100 .3976 218 140 171 2,4 45 12 4157556 TDG534A10200 10,200 .4016 218 140 171 2,4 45 12 4157557 TDG534A10300 10,300 .4055 218 141 171 2,4 45 12 4157558 TDG534A10320 10,320 .4063 218 141 171 2,4 45 12 4157559 TDG534A10400 10,400 .4094 218 141 171 2,4 45 12 4157560 TDG534A10500 10,500 .4134 218 141 171 2,4 45 12 4157561 TDG534A10600 10,600 .4173 218 142 171 2,5 45 12 4157562 TDG534A10700 10,700 .4213 218 142 171 2,5 45 12 4157583 TDG534A10716 10,716 .4219 218 142 171 2,5 45 12 4157584 TDG534A10800 10,800 .4252 218 141 171 2,5 45 12 4157585 TDG534A10900 10,900 .4291 218 141 171 2,5 45 12 4157586 TDG534A11000 11,000 .4331 218 142 171 2,6 45 12 4157587 TDG534A11100 11,100 .4370 218 142 171 2,6 45 12 4157588 TDG534A11113 11,113 .4375 218 142 171 2,6 45 12 4157589 TDG534A11200 11,200 .4409 218 142 171 2,6 45 12 4157590 TDG534A11300 11,300 .4449 218 143 171 2,6 45 12 4157591 TDG534A11400 11,400 .4488 218 143 171 2,7 45 12 4157592 TDG534A11500 11,500 .4528 218 143 171 2,7 45 12 4157593 TDG534A11509 11,509 .4531 218 143 171 2,7 45 12 4157594 TDG534A11600 11,600 .4567 218 144 171 2,7 45 12 4157595 TDG534A11700 11,700 .4606 218 144 171 2,7 45 12 4157596 TDG534A11800 11,800 .4646 218 143 171 2,8 45 12 4157597 TDG534A11900 11,900 .4685 218 143 171 2,8 45 12 4157598 TDG534A11908 11,908 .4688 218 143 171 2,8 45 12 4157599 TDG534A12000 12,000 .4724 218 144 171 2,8 45 12 4157600 TDG534A12100 12,100 .4764 246 164 199 2,8 45 14 4157601 TDG534A12200 12,200 .4803 246 164 199 2,8 45 14 4157602 TDG534A12300 12,300 .4843 246 165 199 2,9 45 14 4157603 TDG534A12304 12,304 .4844 246 165 199 2,9 45 14 4157604 TDG534A12400 12,400 .4882 246 165 199 2,9 45 14 4157605 TDG534A12500 12,500 .4921 246 165 199 2,9 45 14 4157606 TDG534A12600 12,600 .4961 246 165 199 2,9 45 14 4157607 TDG534A12700 12,700 .5000 246 166 199 3,0 45 14 4157608 TDG534A12800 12,800 .5039 246 166 199 3,0 45 14 4157609 TDG534A12900 12,900 .5079 246 165 199 3,0 45 14 4157610 TDG534A13000 13,000 .5118 246 166 199 3,0 45 14 4157611 TDG534A13096 13,096 .5156 246 166 199 3,1 45 14 4157612 TDG534A13100 13,100 .5157 246 166 199 3,1 45 14 (continued) T136 widia.com Solid Carbide Drills
