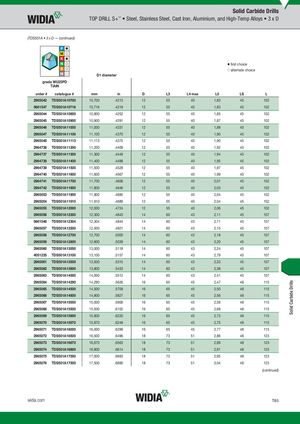

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (TDS501A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2965042 TDS501A10700 10,700 .4213 12 55 40 1,83 45 102 5661547 TDS501A10716 10,716 .4219 12 55 40 1,83 45 102 2965044 TDS501A10800 10,800 .4252 12 55 40 1,85 45 102 2965045 TDS501A10900 10,900 .4291 12 55 40 1,87 45 102 2965046 TDS501A11000 11,000 .4331 12 55 40 1,88 45 102 2965047 TDS501A11100 11,100 .4370 12 55 40 1,90 45 102 2965048 TDS501A11113 11,113 .4375 12 55 40 1,90 45 102 2964736 TDS501A11200 11,200 .4409 12 55 40 1,92 45 102 2964737 TDS501A11300 11,300 .4449 12 55 40 1,94 45 102 2964738 TDS501A11400 11,400 .4488 12 55 40 1,95 45 102 2964739 TDS501A11500 11,500 .4528 12 55 40 1,97 45 102 2964740 TDS501A11600 11,600 .4567 12 55 40 1,99 45 102 2964741 TDS501A11700 11,700 .4606 12 55 40 2,01 45 102 2964742 TDS501A11800 11,800 .4646 12 55 40 2,03 45 102 2965053 TDS501A11900 11,900 .4685 12 55 40 2,04 45 102 2965054 TDS501A11910 11,910 .4689 12 55 40 2,04 45 102 2965055 TDS501A12000 12,000 .4724 12 55 40 2,06 45 102 2965056 TDS501A12300 12,300 .4843 14 60 43 2,11 45 107 5661548 TDS501A12304 12,304 .4844 14 60 43 2,11 45 107 2965057 TDS501A12500 12,500 .4921 14 60 43 2,15 45 107 2965058 TDS501A12700 12,700 .5000 14 60 43 2,18 45 107 2965059 TDS501A12800 12,800 .5039 14 60 43 2,20 45 107 2965060 TDS501A13000 13,000 .5118 14 60 43 2,24 45 107 4051235 TDS501A13100 13,100 .5157 14 60 43 2,79 45 107 2965061 TDS501A13500 13,500 .5315 14 60 43 2,33 45 107 2965062 TDS501A13800 13,800 .5433 14 60 43 2,38 45 107 2965063 TDS501A14000 14,000 .5512 14 60 43 2,41 45 107 2965064 TDS501A14290 14,290 .5626 16 65 45 2,47 48 115 2965065 TDS501A14500 14,500 .5709 16 65 45 2,50 48 115 2965066 TDS501A14800 14,800 .5827 16 65 45 2,56 48 115 2965067 TDS501A15000 15,000 .5906 16 65 45 2,59 48 115 2965068 TDS501A15500 15,500 .6102 16 65 45 2,68 48 115 2965069 TDS501A15800 15,800 .6220 16 65 45 2,73 48 115 2965070 TDS501A15870 15,870 .6248 16 65 45 2,75 48 115 2965071 TDS501A16000 16,000 .6299 16 65 45 2,77 48 115 2965072 TDS501A16500 16,500 .6496 18 73 51 2,86 48 123 2965073 TDS501A16670 16,670 .6563 18 73 51 2,89 48 123 2965074 TDS501A16800 16,800 .6614 18 73 51 2,91 48 123 2965075 TDS501A17000 17,000 .6693 18 73 51 2,95 48 123 2965076 TDS501A17500 17,500 .6890 18 73 51 3,04 48 123 (continued) widia.com T85 Solid Carbide Drills
