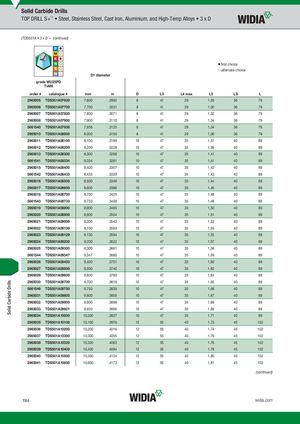

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (TDS501A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2965005 TDS501A07600 7,600 .2992 8 41 29 1,29 36 79 2965006 TDS501A07700 7,700 .3031 8 41 29 1,30 36 79 2965007 TDS501A07800 7,800 .3071 8 41 29 1,32 36 79 2965008 TDS501A07900 7,900 .3110 8 41 29 1,34 36 79 5661540 TDS501A07938 7,938 .3125 8 41 29 1,34 36 79 2965010 TDS501A08000 8,000 .3150 8 41 29 1,36 36 79 2965011 TDS501A08100 8,100 .3189 10 47 35 1,37 40 89 2965012 TDS501A08200 8,200 .3228 10 47 35 1,39 40 89 2965013 TDS501A08300 8,300 .3268 10 47 35 1,41 40 89 5661541 TDS501A08334 8,334 .3281 10 47 35 1,41 40 89 2965015 TDS501A08400 8,400 .3307 10 47 35 1,43 40 89 5661542 TDS501A08433 8,433 .3320 10 47 35 1,43 40 89 2965016 TDS501A08500 8,500 .3346 10 47 35 1,44 40 89 2965017 TDS501A08600 8,600 .3386 10 47 35 1,46 40 89 2965018 TDS501A08700 8,700 .3425 10 47 35 1,48 40 89 5661543 TDS501A08733 8,733 .3438 10 47 35 1,48 40 89 2965019 TDS501A08800 8,800 .3465 10 47 35 1,50 40 89 2965020 TDS501A08900 8,900 .3504 10 47 35 1,51 40 89 2965021 TDS501A09000 9,000 .3543 10 47 35 1,53 40 89 2965022 TDS501A09100 9,100 .3583 10 47 35 1,55 40 89 2965023 TDS501A09129 9,130 .3594 10 47 35 1,55 40 89 2965024 TDS501A09200 9,200 .3622 10 47 35 1,57 40 89 2965025 TDS501A09300 9,300 .3661 10 47 35 1,58 40 89 5661544 TDS501A09347 9,347 .3680 10 47 35 1,59 40 89 2965026 TDS501A09400 9,400 .3701 10 47 35 1,60 40 89 2965027 TDS501A09500 9,500 .3740 10 47 35 1,62 40 89 2965029 TDS501A09600 9,600 .3780 10 47 35 1,64 40 89 2965030 TDS501A09700 9,700 .3819 10 47 35 1,65 40 89 5661546 TDS501A09750 9,750 .3839 10 47 35 1,66 40 89 2965031 TDS501A09800 9,800 .3858 10 47 35 1,67 40 89 2965032 TDS501A09900 9,900 .3898 10 47 35 1,69 40 89 2965033 TDS501A09921 9,920 .3906 10 47 35 1,69 40 89 2965034 TDS501A10000 10,000 .3937 10 47 35 1,71 40 89 2965035 TDS501A10100 10,100 .3976 12 55 40 1,73 45 102 2965036 TDS501A10200 10,200 .4016 12 55 40 1,74 45 102 2965037 TDS501A10300 10,300 .4055 12 55 40 1,76 45 102 2965038 TDS501A10320 10,320 .4063 12 55 40 1,76 45 102 2965039 TDS501A10400 10,400 .4094 12 55 40 1,78 45 102 2965040 TDS501A10500 10,500 .4134 12 55 40 1,80 45 102 2965041 TDS501A10600 10,600 .4173 12 55 40 1,81 45 102 (continued) T84 widia.com Solid Carbide Drills
