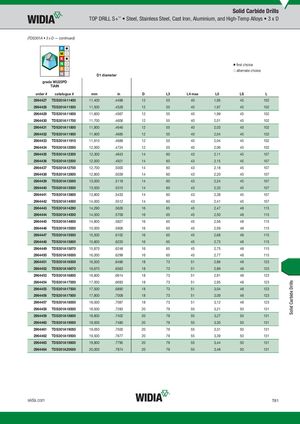

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (TDS301A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2964427 TDS301A11400 11,400 .4488 12 55 40 1,95 45 102 2964428 TDS301A11500 11,500 .4528 12 55 40 1,97 45 102 2964429 TDS301A11600 11,600 .4567 12 55 40 1,99 45 102 2964430 TDS301A11700 11,700 .4606 12 55 40 2,01 45 102 2964431 TDS301A11800 11,800 .4646 12 55 40 2,03 45 102 2964432 TDS301A11900 11,900 .4685 12 55 40 2,04 45 102 2964433 TDS301A11910 11,910 .4689 12 55 40 2,04 45 102 2964434 TDS301A12000 12,000 .4724 12 55 40 2,06 45 102 2964435 TDS301A12300 12,300 .4843 14 60 43 2,11 45 107 2964436 TDS301A12500 12,500 .4921 14 60 43 2,15 45 107 2964437 TDS301A12700 12,700 .5000 14 60 43 2,18 45 107 2964438 TDS301A12800 12,800 .5039 14 60 43 2,20 45 107 2964439 TDS301A13000 13,000 .5118 14 60 43 2,24 45 107 2964440 TDS301A13500 13,500 .5315 14 60 43 2,33 45 107 2964441 TDS301A13800 13,800 .5433 14 60 43 2,38 45 107 2964442 TDS301A14000 14,000 .5512 14 60 43 2,41 45 107 2964443 TDS301A14290 14,290 .5626 16 65 45 2,47 48 115 2964444 TDS301A14500 14,500 .5709 16 65 45 2,50 48 115 2964445 TDS301A14800 14,800 .5827 16 65 45 2,56 48 115 2964446 TDS301A15000 15,000 .5906 16 65 45 2,59 48 115 2964447 TDS301A15500 15,500 .6102 16 65 45 2,68 48 115 2964448 TDS301A15800 15,800 .6220 16 65 45 2,73 48 115 2964449 TDS301A15870 15,870 .6248 16 65 45 2,75 48 115 2964450 TDS301A16000 16,000 .6299 16 65 45 2,77 48 115 2964451 TDS301A16500 16,500 .6496 18 73 51 2,86 48 123 2964452 TDS301A16670 16,670 .6563 18 73 51 2,89 48 123 2964453 TDS301A16800 16,800 .6614 18 73 51 2,91 48 123 2964454 TDS301A17000 17,000 .6693 18 73 51 2,95 48 123 2964455 TDS301A17500 17,500 .6890 18 73 51 3,04 48 123 2964456 TDS301A17800 17,800 .7008 18 73 51 3,09 48 123 2964457 TDS301A18000 18,000 .7087 18 73 51 3,12 48 123 2964458 TDS301A18500 18,500 .7283 20 79 55 3,21 50 131 2964459 TDS301A18800 18,800 .7402 20 79 55 3,27 50 131 2964460 TDS301A19000 19,000 .7480 20 79 55 3,30 50 131 2964461 TDS301A19050 19,050 .7500 20 79 55 3,31 50 131 2964462 TDS301A19500 19,500 .7677 20 79 55 3,39 50 131 2964463 TDS301A19800 19,800 .7795 20 79 55 3,44 50 131 2964464 TDS301A20000 20,000 .7874 20 79 55 3,48 50 131 widia.com T81 Solid Carbide Drills
