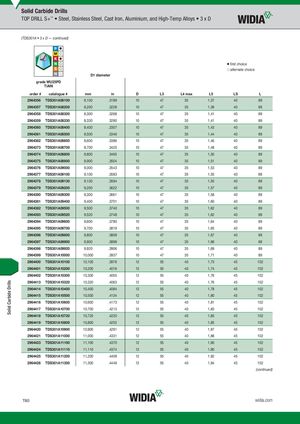

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (TDS301A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2964356 TDS301A08100 8,100 .3189 10 47 35 1,37 40 89 2964357 TDS301A08200 8,200 .3228 10 47 35 1,39 40 89 2964358 TDS301A08300 8,300 .3268 10 47 35 1,41 40 89 2964359 TDS301A08330 8,330 .3280 10 47 35 1,41 40 89 2964360 TDS301A08400 8,400 .3307 10 47 35 1,43 40 89 2964361 TDS301A08500 8,500 .3346 10 47 35 1,44 40 89 2964362 TDS301A08600 8,600 .3386 10 47 35 1,46 40 89 2964373 TDS301A08700 8,700 .3425 10 47 35 1,48 40 89 2964374 TDS301A08800 8,800 .3465 10 47 35 1,50 40 89 2964375 TDS301A08900 8,900 .3504 10 47 35 1,51 40 89 2964376 TDS301A09000 9,000 .3543 10 47 35 1,53 40 89 2964377 TDS301A09100 9,100 .3583 10 47 35 1,55 40 89 2964378 TDS301A09130 9,130 .3594 10 47 35 1,55 40 89 2964379 TDS301A09200 9,200 .3622 10 47 35 1,57 40 89 2964380 TDS301A09300 9,300 .3661 10 47 35 1,58 40 89 2964381 TDS301A09400 9,400 .3701 10 47 35 1,60 40 89 2964382 TDS301A09500 9,500 .3740 10 47 35 1,62 40 89 2964393 TDS301A09520 9,520 .3748 10 47 35 1,62 40 89 2964394 TDS301A09600 9,600 .3780 10 47 35 1,64 40 89 2964395 TDS301A09700 9,700 .3819 10 47 35 1,65 40 89 2964396 TDS301A09800 9,800 .3858 10 47 35 1,67 40 89 2964397 TDS301A09900 9,900 .3898 10 47 35 1,69 40 89 2964398 TDS301A09920 9,920 .3906 10 47 35 1,69 40 89 2964399 TDS301A10000 10,000 .3937 10 47 35 1,71 40 89 2964400 TDS301A10100 10,100 .3976 12 55 40 1,73 45 102 2964401 TDS301A10200 10,200 .4016 12 55 40 1,74 45 102 2964402 TDS301A10300 10,300 .4055 12 55 40 1,76 45 102 2964413 TDS301A10320 10,320 .4063 12 55 40 1,76 45 102 2964414 TDS301A10400 10,400 .4094 12 55 40 1,78 45 102 2964415 TDS301A10500 10,500 .4134 12 55 40 1,80 45 102 2964416 TDS301A10600 10,600 .4173 12 55 40 1,81 45 102 2964417 TDS301A10700 10,700 .4213 12 55 40 1,83 45 102 2964418 TDS301A10720 10,720 .4220 12 55 40 1,83 45 102 2964419 TDS301A10800 10,800 .4252 12 55 40 1,85 45 102 2964420 TDS301A10900 10,900 .4291 12 55 40 1,87 45 102 2964421 TDS301A11000 11,000 .4331 12 55 40 1,88 45 102 2964423 TDS301A11100 11,100 .4370 12 55 40 1,90 45 102 2964424 TDS301A11110 11,110 .4374 12 55 40 1,90 45 102 2964425 TDS301A11200 11,200 .4409 12 55 40 1,92 45 102 2964426 TDS301A11300 11,300 .4449 12 55 40 1,94 45 102 (continued) T80 widia.com Solid Carbide Drills
