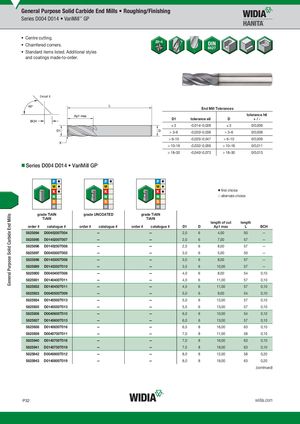

General Purpose Solid Carbide End Mills • Roughing/Finishing Series D004 D014 • VariMill™ GP • Centre cutting. • Chamfered corners. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series D004 D014 • VariMill GP ⅷ first choice ࠗ alternate choice graTdieATlNiAlN grUadNeCUONACTEODAT- E..D gradTeiATlNiAlN TiAlN TiAlN length of cut length order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L BCH 5825894 D0040200T004 — — 2,0 6 4,00 50 — 5825895 D0140200T007 — — 2,0 6 7,00 57 — 5825896 D0140250T008 — — 2,5 6 8,00 57 — 5825897 D0040300T005 — — 3,0 6 5,00 50 — 5825898 D0140300T008 — — 3,0 6 8,00 57 — 5825899 D0140350T010 — — 3,5 6 10,00 57 — 5825900 D0040400T008 — — 4,0 6 8,00 54 0,10 5825931 D0140400T011 — — 4,0 6 11,00 57 0,10 5825932 D0140450T011 — — 4,5 6 11,00 57 0,10 5825933 D0040500T009 — — 5,0 6 9,00 54 0,10 5825934 D0140500T013 — — 5,0 6 13,00 57 0,10 5825935 D0140550T013 — — 5,5 6 13,00 57 0,10 5825936 D0040600T010 — — 6,0 6 10,00 54 0,10 5825937 D0140600T013 — — 6,0 6 13,00 57 0,10 5825938 D0140650T016 — — 6,5 8 16,00 63 0,10 5825939 D0040700T011 — — 7,0 8 11,00 58 0,10 5825940 D0140700T016 — — 7,0 8 16,00 63 0,10 5825941 D0140750T019 — — 7,5 8 19,00 63 0,10 5825942 D0040800T012 — — 8,0 8 12,00 58 0,20 5825943 D0140800T019 — — 8,0 8 19,00 63 0,20 (continued) P32 widia.com General Purpose Solid Carbide End Mills
