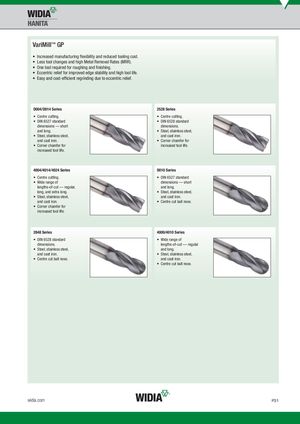

VariMill™ GP • Increased manufacturing flexibility and reduced tooling cost. • Less tool changes and high Metal Removal Rates (MRR). • One tool required for roughing and finishing. • Eccentric relief for improved edge stability and high tool life. • Easy and cost-efficient regrinding due to eccentric relief. D004/D014 Series 2528 Series • Centre cutting. • Centre cutting. • DIN 6527 standard • DIN 6528 standard dimensions — short dimensions. and long. • Steel, stainless steel, • Steel, stainless steel, and cast iron. and cast iron. • Corner chamfer for • Corner chamfer for increased tool life. increased tool life. 4004/4014/4024 Series D010 Series • Centre cutting. • DIN 6527 standard • Wide range of dimensions — short lengths-of-cut — regular, and long. long, and extra long. • Steel, stainless steel, • Steel, stainless steel, and cast iron. and cast iron. • Centre cut ball nose. • Corner chamfer for increased tool life. 2848 Series 4000/4010 Series • DIN 6528 standard • Wide range of dimensions. lengths-of-cut — regular • Steel, stainless steel, and long. and cast iron. • Steel, stainless steel, • Centre cut ball nose. and cast iron. • Centre cut ball nose. widia.com P31
