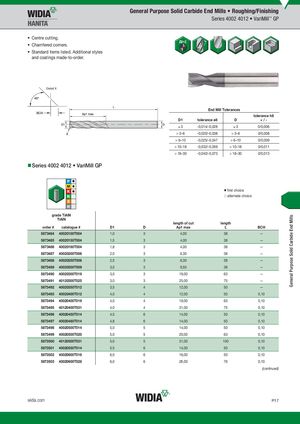

General Purpose Solid Carbide End Mills • Roughing/Finishing Series 4002 4012 • VariMill™ GP • Centre cutting. • Chamfered corners. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 4002 4012 • VariMill GP ⅷ first choice ࠗ alternate choice graTdieATlNiAlN TiAlN length of cut length order # catalogue # D1 D Ap1 max L BCH 5873484 40020100T004 1,0 3 4,00 38 — 5873485 40020150T004 1,5 3 4,00 38 — 5873486 40020180T004 1,8 3 4,00 38 — 5873487 40020200T006 2,0 3 6,30 38 — 5873488 40020250T006 2,5 3 6,30 38 — 5873489 40020300T009 3,0 3 9,50 38 — 5873490 40020300T019 3,0 3 19,00 63 — 5873491 40120300T025 3,0 3 25,00 75 — 5873492 40020350T012 3,5 4 12,00 50 — 5873493 40020400T012 4,0 4 12,00 50 0,10 5873494 40020400T019 4,0 4 19,00 63 0,10 5873495 40120400T031 4,0 4 31,00 75 0,10 5873496 40020450T014 4,5 6 14,00 50 0,10 5873497 40020480T014 4,8 6 14,00 50 0,10 5873498 40020500T014 5,0 5 14,00 50 0,10 5873499 40020500T020 5,0 5 20,00 63 0,10 5873500 40120500T031 5,0 5 31,00 100 0,10 5873501 40020550T014 5,5 6 14,00 50 0,10 5873502 40020600T016 6,0 6 16,00 50 0,10 5873503 40020600T028 6,0 6 28,00 76 0,10 (continued) widia.com P17 General Purpose Solid Carbide End Mills
