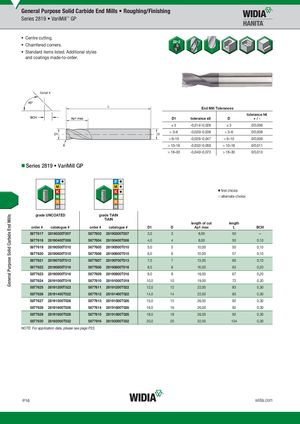

General Purpose Solid Carbide End Mills • Roughing/Finishing Series 2819 • VariMill™ GP • Centre cutting. • Chamfered corners. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 2819 • VariMill GP ⅷ first choice ࠗ alternate choice grUaNdeCOUNATCEODAT- E..D graTdieATlNiAlN TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 5877617 28190300T007 5877603 28190300T007 3,0 3 8,00 50 — 5877618 28190400T008 5877604 28190400T008 4,0 4 8,00 50 0,10 5877619 28190500T010 5877605 28190500T010 5,0 5 10,00 50 0,10 5877620 28190600T010 5877606 28190600T010 6,0 6 10,00 57 0,10 5877621 28190700T013 5877607 28190700T013 7,0 7 13,00 60 0,10 5877622 28190800T016 5877608 28190800T016 8,0 8 16,00 63 0,20 5877623 28190900T016 5877609 28190900T016 9,0 9 16,00 67 0,20 5877624 28191000T019 5877610 28191000T019 10,0 10 19,00 72 0,20 5877625 28191200T022 5877611 28191200T022 12,0 12 22,00 83 0,30 5877626 28191400T022 5877612 28191400T022 14,0 14 22,00 83 0,30 5877627 28191500T026 5877613 28191500T026 15,0 15 26,00 92 0,30 5877628 28191600T026 5877614 28191600T026 16,0 16 26,00 92 0,30 5877629 28191800T026 5877615 28191800T026 18,0 18 26,00 92 0,30 5877630 28192000T032 5877616 28192000T032 20,0 20 32,00 104 0,30 NOTE: For application data, please see page P23. P16 widia.com General Purpose Solid Carbide End Mills
