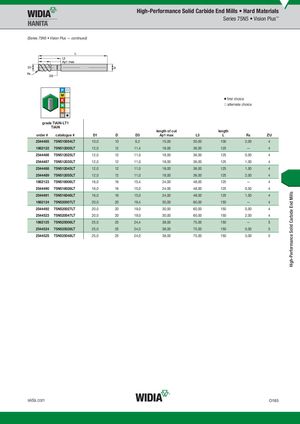

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 75N5 • Vision Plus™ (Series 75N5 • Vision Plus — continued) ⅷ first choice ࠗ alternate choice graTdiAelTNiA- lLNT-1LT1 TiAlN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ ZU 2544485 75N510054LT 10,0 10 9,2 15,00 30,00 100 2,00 4 1862122 75N512005LT 12,0 12 11,4 18,00 36,00 125 — 4 2544486 75N512025LT 12,0 12 11,0 18,00 36,00 125 0,50 4 2544487 75N512035LT 12,0 12 11,0 18,00 36,00 125 1,00 4 2544488 75N512045LT 12,0 12 11,0 18,00 36,00 125 1,50 4 2544489 75N512055LT 12,0 12 11,0 18,00 36,00 125 2,00 4 1862123 75N516006LT 16,0 16 15,4 24,00 48,00 125 — 4 2544490 75N516026LT 16,0 16 15,0 24,00 48,00 125 0,50 4 2544491 75N516046LT 16,0 16 15,0 24,00 48,00 125 1,50 4 1862124 75N520007LT 20,0 20 19,4 30,00 60,00 150 — 4 2544492 75N520027LT 20,0 20 19,0 30,00 60,00 150 0,50 4 2544523 75N520047LT 20,0 20 19,0 30,00 60,00 150 2,00 4 1862125 75N525008LT 25,0 25 24,4 38,00 75,00 150 — 5 2544524 75N525028LT 25,0 25 24,0 38,00 75,00 150 0,50 5 2544525 75N525048LT 25,0 25 24,0 38,00 75,00 150 3,00 5 widia.com O185
