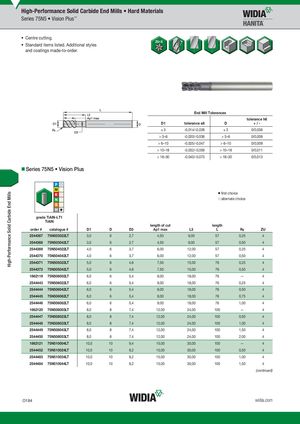

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 75N5 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 75N5 • Vision Plus ⅷ first choice ࠗ alternate choice graTdiAelTNiA- lLNT-1LT1 TiAlN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ ZU 2544367 75N503022LT 3,0 6 2,7 4,50 9,00 57 0,25 4 2544368 75N503042LT 3,0 6 2,7 4,50 9,00 57 0,50 4 2544369 75N504022LT 4,0 6 3,7 6,00 12,00 57 0,25 4 2544370 75N504042LT 4,0 6 3,7 6,00 12,00 57 0,50 4 2544371 75N505022LT 5,0 6 4,6 7,50 15,00 76 0,25 4 2544372 75N505042LT 5,0 6 4,6 7,50 15,00 76 0,50 4 1862119 75N506002LT 6,0 6 5,4 9,00 18,00 76 — 4 2544443 75N506022LT 6,0 6 5,4 9,00 18,00 76 0,25 4 2544444 75N506042LT 6,0 6 5,4 9,00 18,00 76 0,50 4 2544445 75N506062LT 6,0 6 5,4 9,00 18,00 76 0,75 4 2544446 75N506082LT 6,0 6 5,4 9,00 18,00 76 1,00 4 1862120 75N508003LT 8,0 8 7,4 12,00 24,00 100 — 4 2544447 75N508023LT 8,0 8 7,4 12,00 24,00 100 0,50 4 2544448 75N508033LT 8,0 8 7,4 12,00 24,00 100 1,00 4 2544449 75N508043LT 8,0 8 7,4 12,00 24,00 100 1,50 4 2544450 75N508053LT 8,0 8 7,4 12,00 24,00 100 2,00 4 1862121 75N510004LT 10,0 10 9,4 15,00 30,00 100 — 4 2544452 75N510024LT 10,0 10 9,2 15,00 30,00 100 0,50 4 2544483 75N510034LT 10,0 10 9,2 15,00 30,00 100 1,00 4 2544484 75N510044LT 10,0 10 9,2 15,00 30,00 100 1,50 4 (continued) O184 widia.com
