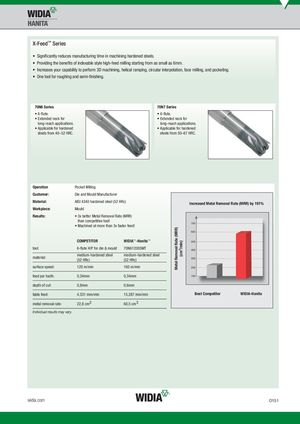

X-Feed™ Series • Significantly reduces manufacturing time in machining hardened steels. • Providing the benefits of indexable style high-feed milling starting from as small as 6mm. • Increases your capability to perform 3D machining, helical ramping, circular interpolation, face milling, and pocketing. • One tool for roughing and semi-finishing. 70N6 Series 70N7 Series • 6-flute. • 6-flute. • Extended neck for • Extended neck for long-reach applications. long-reach applications. • Applicable for hardened • Applicable for hardened steels from 40–52 HRC. steels from 50–67 HRC. Operation Pocket Milling Customer: Die and Mould Manufacturer Material: AISI 4340 hardened steel (52 HRc) Increased Metal Removal Rate (MRR) by 191% Workpiece: Mould Results: • 3x better Metal Removal Rate (MRR) than competitive tool! 700 • Machined at more than 3x faster feed! 600 COMPETITOR WIDIA™-Hanita™ 500 tool: 6-flute H/P for die & mould 70N612005MT 400 material: medium-hardened steel medium-hardened steel(52 HRc)(52 HRc) 300 surface speed: 120 m/min 160 m/min 200 feed per tooth: 0,34mm 0,34mm 100 depth of cut: 0,8mm 0,6mm table feed: 4,331 mm/min 15,287 mm/min Best Competitor WIDIA-Hanita metal removal rate: 22,8 cm3 60,5 cm3 Individual results may vary. widia.com O151 Metal Removal Rate (MRR) (cm3/min)
