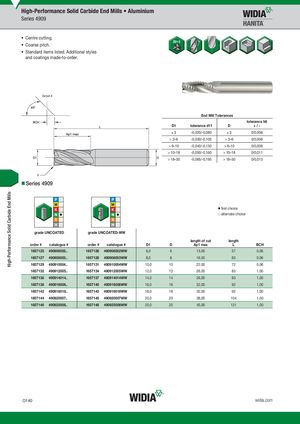

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 4909 • Centre cutting. • Coarse pitch. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/0,006 > 3–6 -0,030/-0,105 > 3–6 0/0,008 > 6–10 -0,040/-0,130 > 6–10 0/0,009 > 10–18 -0,050/-0,160 > 10–18 0/0,011 > 18–30 -0,065/-0,195 > 18–30 0/0,013 X „Series 4909 ⅷ first choice ࠗ alternate choice graUdeNCUONACTOEADTED graUdNeCUONACTOEDAT-EWDW-WW length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 1657125 490906002.. 1657126 490906002WW 6,0 6 13,00 57 0,06 1657127 490908003.. 1657128 490908003WW 8,0 8 16,00 63 0,06 1657129 490910004.. 1657131 490910004WW 10,0 10 22,00 72 0,06 1657132 490912005.. 1657134 490912005WW 12,0 12 26,00 83 1,00 1657136 490914014.. 1657137 490914014WW 14,0 14 26,00 83 1,00 1657138 490916006.. 1657140 490916006WW 16,0 16 32,00 92 1,00 1657142 490918018.. 1657143 490918018WW 18,0 18 32,00 92 1,00 1657144 490920007.. 1657145 490920007WW 20,0 20 38,00 104 1,00 1657146 490925008.. 1657148 490925008WW 25,0 25 45,00 121 1,00 O140 widia.com
