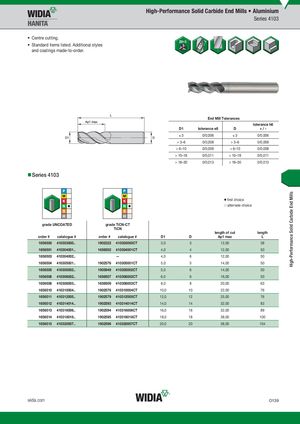

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 4103 • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 0/0,006 )3 0/0,006 > 3–6 0/0,008 > 3–6 0/0,008 > 6–10 0/0,009 > 6–10 0/0,009 > 10–18 0/0,011 > 10–18 0/0,011 > 18–30 0/0,013 > 18–30 0/0,013 Series 4103 ⅷ first choice ࠗ alternate choice graUdeNCUONACTOEADTED graTdieCTNi-CCNT-CT TiCN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 1656500 410303000.. 1902322 410303000CT 3,0 3 12,00 38 1656501 410304001.. 1656502 410304001CT 4,0 4 12,00 50 1656503 410304002.. — 4,0 6 12,00 50 1656504 410305001.. 1902576 410305001CT 5,0 5 14,00 50 1656505 410305002.. 1905949 410305002CT 5,0 6 14,00 50 1656506 410306002.. 1656507 410306002CT 6,0 6 16,00 50 1656508 410308003.. 1656509 410308003CT 8,0 8 20,00 63 1656510 410310004.. 1902578 410310004CT 10,0 10 22,00 76 1656511 410312005.. 1902579 410312005CT 12,0 12 25,00 76 1656512 410314014.. 1902593 410314014CT 14,0 14 32,00 83 1656513 410316006.. 1902594 410316006CT 16,0 16 32,00 89 1656514 410318018.. 1902595 410318018CT 18,0 18 38,00 100 1656515 410320007.. 1902596 410320007CT 20,0 20 38,00 104 widia.com O139
