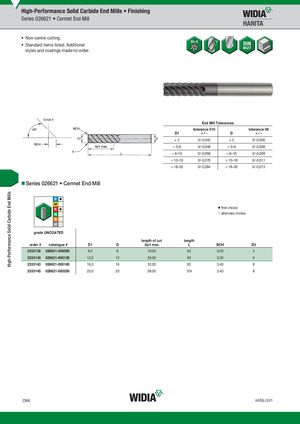

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series 026621 • Cermet End Mill • Non-centre cutting. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 026621 • Cermet End Mill ⅷ first choice ࠗ alternate choice graUdeNCUONCATOEADTED length of cut length order # catalogue # D1 D Ap1 max L BCH ZU 2333138 026621-000080 8,0 8 19,00 63 0,20 4 2333140 026621-000120 12,0 12 26,00 83 0,30 6 2333143 026621-000160 16,0 16 32,00 92 0,40 8 2333145 026621-000200 20,0 20 38,00 104 0,40 8 O96 widia.com
