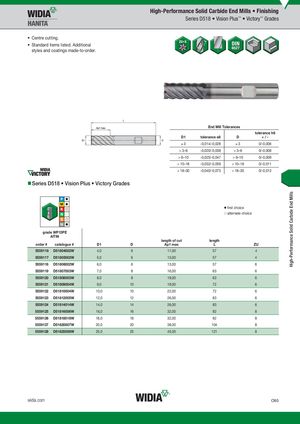

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series D518 • Vision Plus™ • Victory™ Grades • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series D518 • Vision Plus • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D Ap1 max L ZU 5559116 D51804002W 4,0 6 11,00 57 4 5559117 D51805002W 5,0 6 13,00 57 4 5559118 D51806002W 6,0 6 13,00 57 6 5559119 D51807003W 7,0 8 16,00 63 6 5559120 D51808003W 8,0 8 19,00 63 6 5559121 D51809004W 9,0 10 19,00 72 6 5559122 D51810004W 10,0 10 22,00 72 6 5559123 D51812005W 12,0 12 26,00 83 6 5559124 D51814014W 14,0 14 26,00 83 6 5559125 D51816006W 16,0 16 32,00 92 8 5559126 D51818018W 18,0 18 32,00 92 8 5559127 D51820007W 20,0 20 38,00 104 8 5559128 D51825008W 25,0 25 45,00 121 8 widia.com O95
