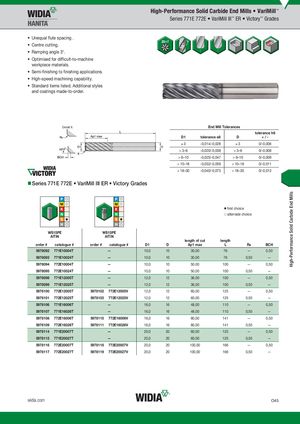

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 771E 772E • VariMill III™ ER • Victory™ Grades • Unequal flute spacing . • Centre cutting. • Ramping angle 3°. • Optimised for difficult-to-machine workpiece materials. • Semi-finishing to finishing applications. • High-speed machining capability. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 771E 772E • VariMill III ER • Victory Grades ⅷ first choice ࠗ alternate choice WSP15PE WPS15PE AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L R¡ BCH 5978092 771E10004T — 10,0 10 30,00 76 — 0,50 5978093 771E10024T — 10,0 10 30,00 76 0,50 — 5978094 772E10004T — 10,0 10 50,00 100 — 0,50 5978095 772E10024T — 10,0 10 50,00 100 0,50 — 5978098 771E12005T — 12,0 12 36,00 100 — 0,50 5978099 771E12025T — 12,0 12 36,00 100 0,50 — 5978100 772E12005T 5978102 772E12005V 12,0 12 60,00 125 — 0,50 5978101 772E12025T 5978103 772E12025V 12,0 12 60,00 125 0,50 — 5978106 771E16006T — 16,0 16 48,00 110 — 0,50 5978107 771E16026T — 16,0 16 48,00 110 0,50 — 5978108 772E16006T 5978110 772E16006V 16,0 16 80,00 141 — 0,50 5978109 772E16026T 5978111 772E16026V 16,0 16 80,00 141 0,50 — 5978114 771E20007T — 20,0 20 60,00 125 — 0,50 5978115 771E20027T — 20,0 20 60,00 125 0,50 — 5978116 772E20007T 5978118 772E20007V 20,0 20 100,00 166 — 0,50 5978117 772E20027T 5978119 772E20027V 20,0 20 100,00 166 0,50 — widia.com O45
