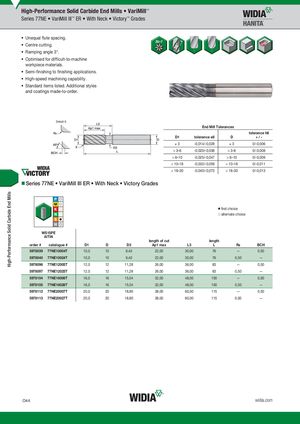

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 77NE • VariMill III™ ER • With Neck • Victory™ Grades • Unequal flute spacing. • Centre cutting. • Ramping angle 3°. • Optimised for difficult-to-machine workpiece materials. • Semi-finishing to finishing applications. • High-speed machining capability. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 77NE • VariMill III ER • With Neck • Victory Grades ⅷ first choice ࠗ alternate choice WS15PE AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ BCH 5978039 77NE10004T 10,0 10 9,40 22,00 30,00 76 — 0,50 5978040 77NE10024T 10,0 10 9,40 22,00 30,00 76 0,50 — 5978096 77NE12005T 12,0 12 11,28 26,00 36,00 83 — 0,50 5978097 77NE12025T 12,0 12 11,28 26,00 36,00 83 0,50 — 5978104 77NE16006T 16,0 16 15,04 32,00 48,00 100 — 0,50 5978105 77NE16026T 16,0 16 15,04 32,00 48,00 100 0,50 — 5978112 77NE20007T 20,0 20 18,80 38,00 60,00 115 — 0,50 5978113 77NE20027T 20,0 20 18,80 38,00 60,00 115 0,50 — O44 widia.com
