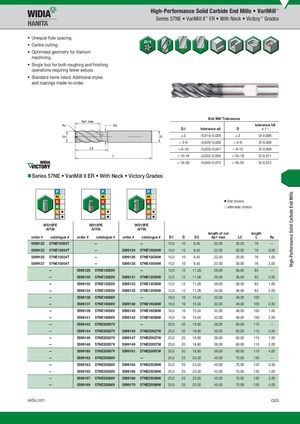

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 57NE • VariMill II™ ER • With Neck • Victory™ Grades • Unequal flute spacing. • Centre cutting. • Optimised geometry for titanium machining. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 57NE • VariMill II ER • With Neck • Victory Grades ⅷ first choice ࠗ alternate choice WS15PE WS15PE WS15PE AlTiN AlTiN AlTiN length of cut length order # catalogue # order # catalogue # order # catalogue # D1 D D3 Ap1 max L3 L R¡ 5599122 57NE10004T — — 10,0 10 9,40 22,00 30,00 76 — 5599123 57NE10024T — 5599124 57NE10024W 10,0 10 9,40 22,00 30,00 76 0,50 5599125 57NE10034T — 5599126 57NE10034W 10,0 10 9,40 22,00 30,00 76 1,00 5599127 57NE10054T — 5599128 57NE10054W 10,0 10 9,40 22,00 30,00 76 2,00 — 5599129 57NE12005V — 12,0 12 11,28 26,00 36,00 83 — — 5599130 57NE12025V 5599131 57NE12025W 12,0 12 11,28 26,00 36,00 83 0,50 — 5599132 57NE12035V 5599133 57NE12035W 12,0 12 11,28 26,00 36,00 83 1,00 — 5599134 57NE12055V 5599135 57NE12055W 12,0 12 11,28 26,00 36,00 83 2,00 — 5599136 57NE16006V — 16,0 16 15,04 32,00 48,00 100 — — 5599137 57NE16026V 5599138 57NE16026W 16,0 16 15,04 32,00 48,00 100 0,50 — 5599139 57NE16036V 5599140 57NE16036W 16,0 16 15,04 32,00 48,00 100 1,00 — 5599141 57NE16056V 5599142 57NE16056W 16,0 16 15,04 32,00 48,00 100 2,00 — 5599143 57NE20007V — 20,0 20 18,80 38,00 60,00 115 — — 5599144 57NE20027V 5599145 57NE20027W 20,0 20 18,80 38,00 60,00 115 0,50 — 5599146 57NE20037V 5599147 57NE20037W 20,0 20 18,80 38,00 60,00 115 1,00 — 5599148 57NE20057V 5599149 57NE20057W 20,0 20 18,80 38,00 60,00 115 2,00 — 5599160 57NE20087V 5599161 57NE20087W 20,0 20 18,80 38,00 60,00 115 4,00 — 5599162 57NE25008V — 25,0 25 23,50 45,00 75,00 135 — — 5599163 57NE25028V 5599164 57NE25028W 25,0 25 23,50 45,00 75,00 135 0,50 — 5599165 57NE25038V 5599166 57NE25038W 25,0 25 23,50 45,00 75,00 135 1,00 — 5599167 57NE25058V 5599168 57NE25058W 25,0 25 23,50 45,00 75,00 135 2,00 — 5599169 57NE25088V 5599170 57NE25088W 25,0 25 23,50 45,00 75,00 135 4,00 widia.com O33
