Каталог Widia трохоидальное фрезерование - страница 50

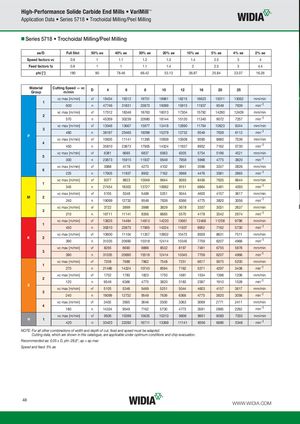

High-Performance Solide Carbide End Mills • VariMill™ Application Data • Series 5718 • Trochoidal Milling/Peel Milling „Series 5718 • Trochoidal Milling/Peel Milling ae/D Full Slot 50% ae 40% ae 30% ae 20% ae 10% ae 5% ae 4% ae 2% ae Speed factors vc 0.9 1 1.1 1.2 1.3 1.4 2.5 3 4 Feed factors fz 0.8 1 1 1.1 1.4 2 2.5 3 4.4 phi [°] 180 90 78.46 66.42 53.13 36.87 25.84 23.07 16.26 MaterialGroup Cutting Speed — vcm/min D 4 6 8 10 12 16 20 25 vc max [m/min] vf 18434 19312 19751 18961 18215 16623 15011 13062 mm/min 1 600 n 47746 31831 23873 19099 15915 11937 9549 7639 min-1 vc max [m/min] vf 17512 18346 18763 18013 17304 15792 14260 12409 mm/min 2 570 n 45359 30239 22680 18144 15120 11340 9072 7257 min-1 vc max [m/min] vf 13046 13667 13977 13418 12890 11764 10623 9244 mm/min 3 480 n 38197 25465 19099 15279 12732 9549 7639 6112 min-1 P vc max [m/min] vf 10635 11141 11395 10939 10508 9590 8660 7536 mm/min 4 450 n 35810 23873 17905 14324 11937 8952 7162 5730 min-1 vc max [m/min] vf 6381 6685 6837 6563 6305 5754 5196 4521 mm/min 5 300 n 23873 15915 11937 9549 7958 5968 4775 3820 min-1 vc max [m/min] vf 3988 4178 4273 4102 3941 3596 3247 2826 mm/min 6 225 n 17905 11937 8952 7162 5968 4476 3581 2865 min-1 vc max [m/min] vf 9377 9823 10046 9644 9265 8456 7635 6644 mm/min 1 345 n 27454 18303 13727 10982 9151 6864 5491 4393 min-1 vc max [m/min] vf 5105 5348 5469 5251 5044 4603 4157 3617 mm/min M 2 240 n 19099 12732 9549 7639 6366 4775 3820 3056 min-1 vc max [m/min] vf 3722 3899 3988 3829 3678 3357 3031 2637 mm/min 3 210 n 16711 11141 8356 6685 5570 4178 3342 2674 min-1 vc max [m/min] vf 13825 14484 14813 14220 13661 12468 11258 9796 mm/min 1 450 n 35810 23873 17905 14324 11937 8952 7162 5730 min-1 vc max [m/min] vf 10600 11104 11357 10902 10473 9559 8631 7511 mm/min K 2 390 n 31035 20690 15518 12414 10345 7759 6207 4966 min-1 vc max [m/min] vf 8295 8690 8888 8532 8197 7481 6755 5878 mm/min 3 390 n 31035 20690 15518 12414 10345 7759 6207 4966 min-1 vc max [m/min] vf 7338 7688 7862 7548 7251 6617 5975 5200 mm/min 1 270 n 21486 14324 10743 8594 7162 5371 4297 3438 min-1 vc max [m/min] vf 1702 1783 1823 1750 1681 1534 1386 1206 mm/min 2 120 n 9549 6366 4775 3820 3183 2387 1910 1528 min-1 S vc max [m/min] vf 5105 5348 5469 5251 5044 4603 4157 3617 mm/min 3 240 n 19099 12732 9549 7639 6366 4775 3820 3056 min-1 vc max [m/min] vf 3403 3565 3646 3500 3363 3069 2771 2411 mm/min 4 180 n 14324 9549 7162 5730 4775 3581 2865 2292 min-1 vc max [m/min] vf 9926 10399 10635 10210 9808 8951 8083 7033 mm/min H 1 420 n 33423 22282 16711 13369 11141 8356 6685 5348 min-1 NOTE: For all other combinations of width and depth of cut, feed and speed must be adapted. Cutting data, which are shown in this catalogue, are applicable under optimum conditions and chip evacuation. Recommended ae: 0,05 x D, phi~28,8°, ap = ap max Speed and feed: 5% ae 48 WWW.WIDIA.COM
