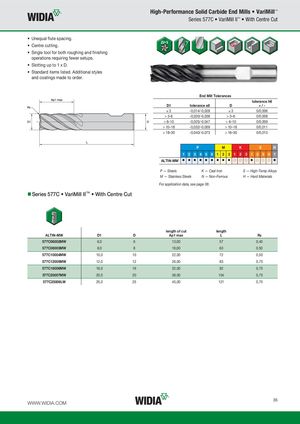

High-Performance Solid Carbide End Mills • VariMill™ Series 577C • VariMill II™ • With Centre Cut • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Slotting up to 1 x D. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3-6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 ALTIN-MW ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 38. „Series 577C • VariMill II™ • With Centre Cut AlTiN - MW length of cut length ALTIN-MW D1 D Ap1 max L R¡ 577C06002MW 6,0 6 13,00 57 0,40 577C08003MW 8,0 8 16,00 63 0,50 577C10004MW 10,0 10 22,00 72 0,50 577C12005MW 12,0 12 26,00 83 0,75 577C16006MW 16,0 16 32,00 92 0,75 577C20007MW 20,0 20 38,00 104 0,75 577C25008LW 25,0 25 45,00 121 0,75 WWW.WIDIA.COM 35
