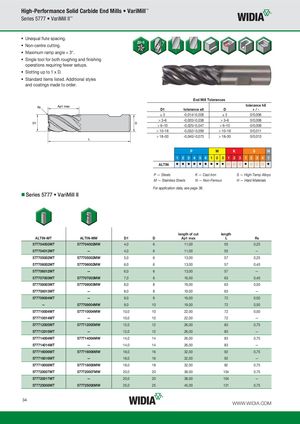

High-Performance Solid Carbide End Mills • VariMill™ Series 5777 • VariMill II™ • Unequal flute spacing. • Non-centre cutting. • Maximum ramp angle = 3°. • Single tool for both roughing and finishing operations requiring fewer setups. • Slotting up to 1 x D. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 ALTIN ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 38. „Series 5777 • VariMill II AlTiN - MT AlTiN - MW length of cut length ALTIN-MT ALTIN-MW D1 D Ap1 max L R¡ 577704002MT 577704002MW 4,0 6 11,00 55 0,25 577704012MT — 4,0 6 11,00 55 — 577705002MT 577705002MW 5,0 6 13,00 57 0,25 577706002MT 577706002MW 6,0 6 13,00 57 0,40 577706012MT — 6,0 6 13,00 57 — 577707003MT 577707003MW 7,0 8 16,00 63 0,40 577708003MT 577708003MW 8,0 8 19,00 63 0,50 577708013MT — 8,0 8 19,00 63 — 577709004MT — 9,0 9 19,00 72 0,50 — 577709004MW 9,0 10 19,00 72 0,50 577710004MT 577710004MW 10,0 10 22,00 72 0,50 577710014MT — 10,0 10 22,00 72 — 577712005MT 577712005MW 12,0 12 26,00 83 0,75 577712015MT — 12,0 12 26,00 83 — 577714004MT 577714004MW 14,0 14 26,00 83 0,75 577714014MT — 14,0 14 26,00 83 — 577716006MT 577716006MW 16,0 16 32,00 92 0,75 577716016MT — 16,0 16 32,00 92 — 577718008MT 577718008MW 18,0 18 32,00 92 0,75 577720007MT 577720007MW 20,0 20 38,00 104 0,75 577720017MT — 20,0 20 38,00 104 — 577725008MT 577725008MW 25,0 25 45,00 121 0,75 34 WWW.WIDIA.COM
