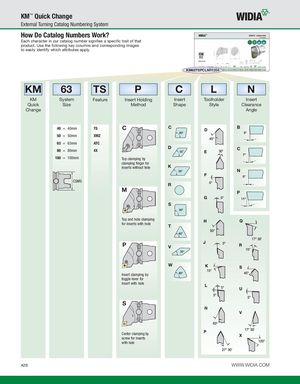

KM™ Quick Change External Turning Catalog Numbering System How Do Catalog Numbers Work? Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. KM63TSPCLNR1204 KM 63 TS P C L N KM System Feature Insert Holding Insert Toolholder Insert Quick Size Method Shape Style Clearance Change Angle 40 = 40mm TS C C B 50 = 50mm XMZ 63 = 63mm ATC 80 = 80mm 4X D C 100 = 100mm Top clamping by clamping finger for inserts without hole K N CSMS R M P S Top and hole clamping for inserts with hole T P V W Insert clamping by toggle lever for insert with hole S Center clamping by screw for inserts with hole A26 WWW.WIDIA.COM
