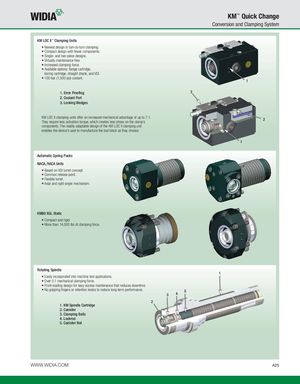

KM™ Quick Change Conversion and Clamping System KM LOC II™ Clamping Units • Newest design in turn-to-turn clamping. • Compact design with fewer components. • Single- and two-piece designs. • Virtually maintenance free. • Increased clamping force. • Available options: flange cartridge, boring cartridge, straight shank, and VDI. • 100 bar (1,500 psi) coolant. 1 1. Error Proofing 3 2. Coolant Port 3. Locking Wedges KM LOC II clamping units offer an increased mechanical advantage of up to 7:1.They require less activation torque, which creates less stress on the clamp’s2 components. The readily adaptable design of the KM LOC II clamping unit enables the device’s user to manufacture the tool block as they choose. 1 Automatic Spring Packs NACA, RACA Units • Based on VDI turret concept. • Common release point. • Flexible turret. • Axial and right-angle mechanism. KM80 XGL Static • Compact and rigid. • More than 14,000 lbs of clamping force. Rotating Spindle 1 • Easily incorporated into machine tool applications. • Over 5:1 mechanical clamping force. • Front-loading design for easy access maintenance that reduces downtime. • No gripping fingers or retention knobs to reduce long-term performance. 3 4 5 2 1. KM Spindle Cartridge 2. Canister 3. Clamping Balls 4. Lockrod 5. Canister Nut WWW.WIDIA.COM A25
