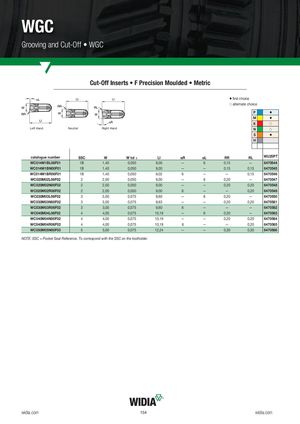

WGC Grooving and Cut-Off • WGC Cut-Off Inserts • F Precision Moulded • Metric v first choice j alternate choice P v M v K j Left Hand Neutral Right Hand N j S v H catalogue number SSC W W tol ± LI aR aL RR RL WU25PT WC014M1BL06F01 1B 1,40 0,050 9,00 — 6 0,15 — 6470544 WC014M1BN00F01 1B 1,40 0,050 9,00 — — 0,15 0,15 6470545 WC014M1BR06F01 1B 1,40 0,050 9,02 6 — — 0,15 6470546 WC020M02L06F02 2 2,00 0,050 9,00 — 6 0,20 — 6470547 WC020M02N00F02 2 2,00 0,050 9,00 — — 0,20 0,20 6470548 WC020M02R06F02 2 2,00 0,050 9,00 6 — — 0,20 6470549 WC030M03L06F02 3 3,00 0,075 9,60 — 6 0,20 — 6470550 WC030M03N00F02 3 3,00 0,075 9,63 — — 0,20 0,20 6470561 WC030M03R06F02 3 3,00 0,075 9,60 6 — — — 6470562 WC040M04L06F02 4 4,00 0,075 10,19 — 6 0,20 — 6470563 WC040M04N00F02 4 4,00 0,075 10,19 — — 0,20 0,20 6470564 WC040M04R06F02 4 4,00 0,075 10,19 6 — — 0,20 6470565 WC050M05N00F03 5 5,00 0,075 12,24 — — 0,30 0,30 6470566 NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder. widia.com 154 widia.com
