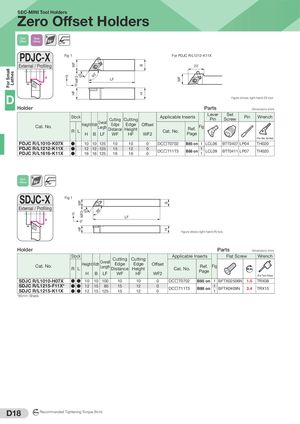

SEC-MINI Tool Holders Zero Offset Holders Zero Back Offset Clamp 93° PDJC-X Fig 1 For PDJC R/L1212-K11X WF External / Profiling 22 B For Small Lathes 0˚ ˚ 55 93 WF2 WF ˚ LF 0˚ HF H D Holder Parts Figure shows right-hand (R) tool. Dimensions (mm) Lever Set Stock Applicable Inserts Pin Wrench Cutting Cutting Pin Screw Overall Edge Edge Cat. No. Height Width Offset Fig Length Distance Height Ref. R L Cat. No. H B LF WF HF WF2 Page (For Hex Socket) PDJC R/L1010-K07X ● 10 10 125 10 10 0 DC□T0702 B85 on 1 LCL06 BTT0407 LP04 TH020 PDJC R/L1212-K11X ● 12 12 125 15 12 0 1 DC□T11T3 B88 on LCL09 BTT0411 LP07 TH020 PDJC R/L1616-K11X ● 16 16 125 16 16 0 1 Zero Offset 93° SDJC-X Fig 1 WF B External / Profiling ˚ 55 93 WF2 0˚ ˚ LF 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Offset Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF WF2 (For Torx Holes) SDJC R/L1010-H07X ● ● 10 10 100 10 10 0 DC□T0702 B85 on 1 BFTX02506N 1.5 TRX08 SDJC R/L1215-F11X* ● ● 12 15 85 15 12 0 1 DC□T11T3 B88 on BFTX0409N 3.4 TRX15 SDJC R/L1215-K11X ● ● 12 15 125 15 12 0 1 *85mm Shank D18 N m Recommended Tightening Torque (N·m)
